Mid Generational Restyling, Model year

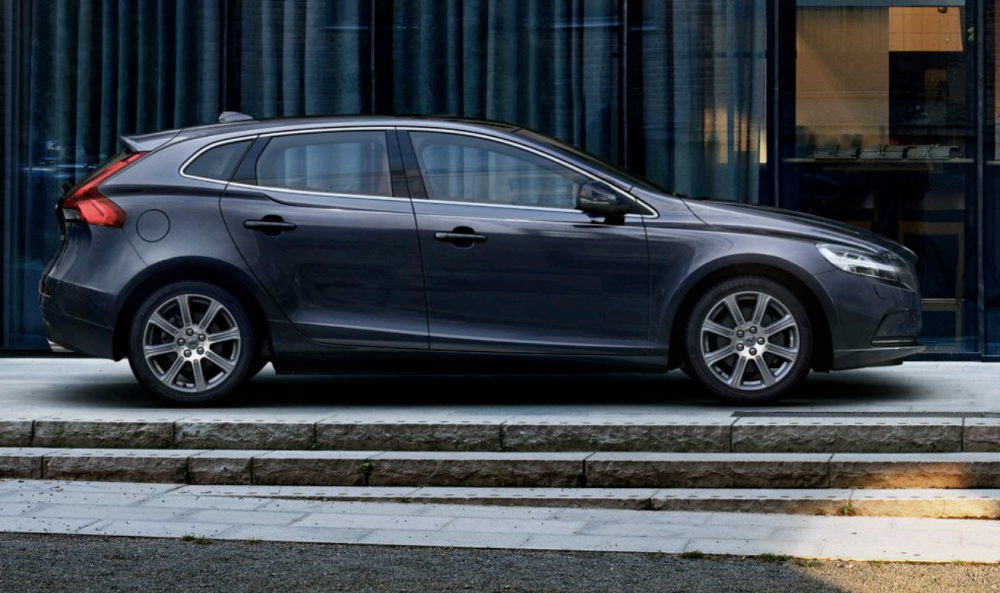

Volvo V40 (P1) 2016 Update
Produced from 2016 to 2019
Restyling of Volvo V40 (P1)
Informations about
Restyling of Volvo V40 (P1)
Produced from 2016 to 2019
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
|---|---|---|---|---|---|---|---|---|---|
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
| 2016 | Volvo V40 T2 (2016) | Petrol | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 T2 Automatic (2016) | Petrol | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 D2 (2016) | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country D2 Automatic (2016) | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country T4 AWD (2016) | Petrol | Hatchback | AWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 T3 (2016) | Petrol | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country T3 Automatic (2016) | Petrol | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 D3 (2016) | Diesel | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 D4 Automatic (2016) | Diesel | Hatchback | FWD | 220 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country D3 Automatic (2016) | Diesel | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country T5 AWD (2016) | Petrol | Hatchback | AWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country T3 (2016) | Petrol | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 D4 (2016) | Diesel | Hatchback | FWD | 230 km/h | 1 | D | ||
| 2016 | Volvo V40 D2 Automatic (2016) | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 T5 (2016) | Petrol | Hatchback | FWD | 240 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country D3 (2016) | Diesel | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 D3 Automatic (2016) | Diesel | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 D2 ECO Automatic (2016) | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country D2 (2016) | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country D4 Automatic (2016) | Diesel | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 D2 ECO (2016) | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2016 | Volvo V40 Cross Country D4 (2016) | Diesel | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2016 | Volvo V40 T3 Automatic (2016) | Petrol | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2018 | Volvo V40 T2 Geartronic | Petrol | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 T3 Geartronic | Petrol | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2018 | Volvo V40 D2 Geartronic | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 D2 Geartronic Business | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 D2 Geartronic Business Plus | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 D2 Geartronic R-design | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 D3 Geartronic | Diesel | Hatchback | FWD | 205 km/h | 1 | D | ||
| 2018 | Volvo V40 D3 Geartronic Business | Diesel | Hatchback | FWD | 205 km/h | 1 | D | ||
| 2018 | Volvo V40 D3 Geartronic Business Plus | Diesel | Hatchback | FWD | 205 km/h | 1 | D | ||
| 2018 | Volvo V40 D3 Geartronic R-design | Diesel | Hatchback | FWD | 205 km/h | 1 | D | ||
| 2018 | Volvo V40 Cross Country T3 Geartronic | Petrol | Hatchback | FWD | 210 km/h | 1 | D | ||
| 2018 | Volvo V40 Cross Country D2 Geartronic | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 Cross Country D2 Geartronic Business Plus | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 Cross Country D2 Geartronic Style Plus | Diesel | Hatchback | FWD | 190 km/h | 1 | D | ||
| 2018 | Volvo V40 Cross Country D3 Geartronic | Diesel | Hatchback | FWD | 205 km/h | 1 | D | ||
| 2018 | Volvo V40 Cross Country D3 Geartronic Business Plus | Diesel | Hatchback | FWD | 205 km/h | 1 | D | ||
| 2018 | Volvo V40 Cross Country D3 Geartronic Style Plus | Diesel | Hatchback | FWD | 205 km/h | 1 | D |
| Id.Engine | 1969 cc | 1969 cc | 1969 cc |
|---|---|---|---|
| Kind of Engine | Turbocharged | Turbocharged | Turbocharged |
| Identificative engine | D4204T9 | ||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1969 cc | 1969 cc | 1969 cc |
| Cylinders number | 4 | 4 | 4 |
| Fuel | Diesel | Diesel | Diesel |
| Electric engine - kind | |||
| Battery kind | |||
| Peak Power (hp) | |||
| Peak Power (kW) | |||
| Battery power | |||
| Operating Voltage | |||
| Battery: Operating Temperature | |||
| Battery: System Voltage | |||
| Battery: Cell Configuration | |||
| Battery: 0-80% Charge time | |||
| Torque | 280 N-m | 320 N-m | 400 N-m |
| Torque @ r.p.m. | 1500-2250 rpm | 1750-3000 rpm | 1750-2500 rpm |
| Cylinders angle | |||
| Maximum Power (HP) | 118 hp | 148 hp | 187.5 hp |
| Power (PS) | 120 ps | 150 ps | 190 ps |
| Power kW | 88 kW | 110 kW | 140 kW |
| Power @ rounds per minute | 3750 rpm | 3750 rpm | 4250 rpm |
| Bore | 82 mm | 82 mm | 82 mm |
| Stroke | 93.2 mm | 93.2 mm | 93.2 mm |
| Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
| Compression Ratio | 16:1 | 16:1 | 15.8:1 |
| Engine block material | |||
| Cylinder head material | |||
| Fuel System | common rail direct diesel injection | common rail direct diesel injection | common rail direct petrol injection |
| Coolant | Water | Water | Water |
| Engine Data accuracy | D | ||
| V40 D2 V40 Cross Country D2 Automatic V40 D2 Automatic V40 D2 ECO Automatic V40 Cross Country D2 V40 D2 ECO V40 D2 Geartronic V40 D2 Geartronic Business V40 D2 Geartronic Business Plus V40 D2 Geartronic R-design V40 Cross Country D2 Geartronic V40 Cross Country D2 Geartronic Business Plus V40 Cross Country D2 Geartronic Style Plus | V40 D3 V40 Cross Country D3 Automatic V40 Cross Country D3 V40 D3 Automatic V40 D3 Geartronic V40 D3 Geartronic Business V40 D3 Geartronic Business Plus V40 D3 Geartronic R-design V40 Cross Country D3 Geartronic V40 Cross Country D3 Geartronic Business Plus V40 Cross Country D3 Geartronic Style Plus | V40 D4 Automatic V40 D4 V40 Cross Country D4 Automatic V40 Cross Country D4 |
| Id.Engine | 1498 cc | 1498 cc | 1498 cc | 1969 cc | 1969 cc | 1969 cc | 1969 cc |
|---|---|---|---|---|---|---|---|
| Kind of Engine | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | |
| Identificative engine | |||||||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1498 cc | 1498 cc | 1498 cc | 1969 cc | 1969 cc | 1969 cc | 1969 cc |
| Cylinders number | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Electric engine - kind | |||||||
| Battery kind | |||||||
| Peak Power (hp) | |||||||
| Peak Power (kW) | |||||||
| Battery power | |||||||
| Operating Voltage | |||||||
| Battery: Operating Temperature | |||||||
| Battery: System Voltage | |||||||
| Battery: Cell Configuration | |||||||
| Battery: 0-80% Charge time | |||||||
| Torque | 220 N-m | 220 N-m | 250 N-m | 220 N-m | 250 N-m | 320 N-m | 350 N-m |
| Torque @ r.p.m. | 1800 rpm | 1600-3500 rpm | 1700-4000 rpm | 1100-3500 rpm | 1300-4000 rpm | 1500-4800 rpm | 1100-3500 rpm |
| Cylinders angle | |||||||
| Maximum Power (HP) | 122 hp | 120.5 hp | 150 hp | 120.5 hp | 150 hp | 187.5 hp | 242 hp |
| Power (PS) | 122 ps | 152 ps | 122 ps | 152 ps | 190 ps | 245 ps | |
| Power kW | 90 kW | 90 kW | 112 kW | 90 kW | 112 kW | 140 kW | 180 kW |
| Power @ rounds per minute | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | 5500 rpm |
| Bore | 82 mm | 82 mm | 82 mm | 82 mm | 82 mm | 82 mm | |
| Stroke | 70.9 mm | 70.9 mm | 93.2 mm | 93.2 mm | 93.2 mm | 93.2 mm | |
| Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | |
| Compression Ratio | 10.5:1 | 10.5:1 | 11.3:1 | 11.3:1 | 10.8:1 | 10.8:1 | |
| Engine block material | |||||||
| Cylinder head material | |||||||
| Fuel System | direct petrol injection | efi | direct petrol injection | direct petrol injection | direct petrol injection | ||
| Coolant | Water | Water | Water | Water | Water | Water | |
| Engine Data accuracy | D | ||||||
| V40 T2 Geartronic | V40 T2 Automatic | V40 Cross Country T3 Automatic V40 T3 Automatic V40 T3 Geartronic V40 Cross Country T3 Geartronic | V40 T2 | V40 T3 V40 Cross Country T3 | V40 Cross Country T4 AWD V40 Cross Country T5 AWD | V40 T5 |
