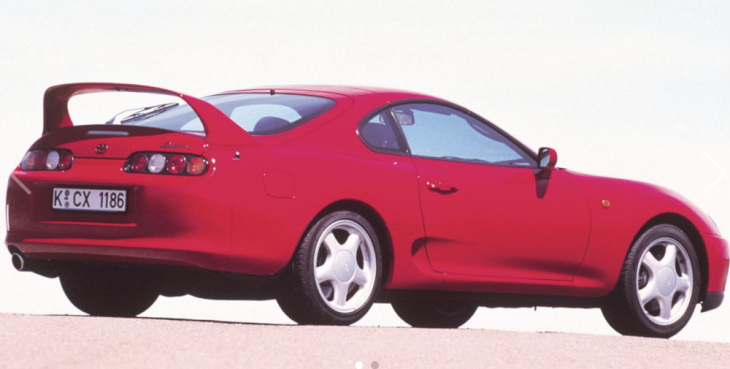

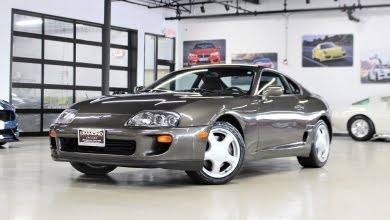

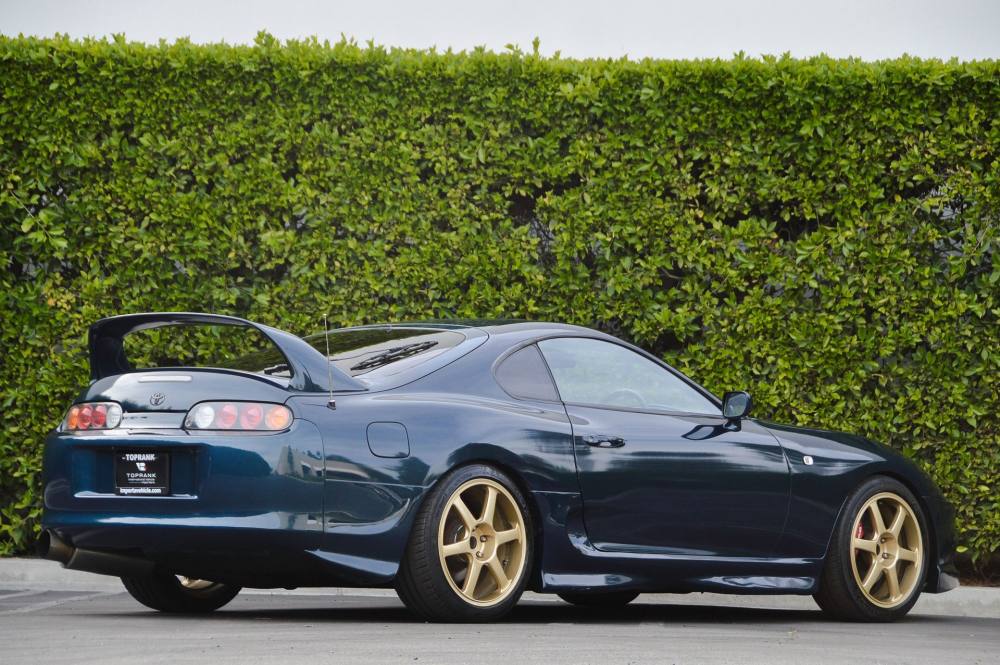

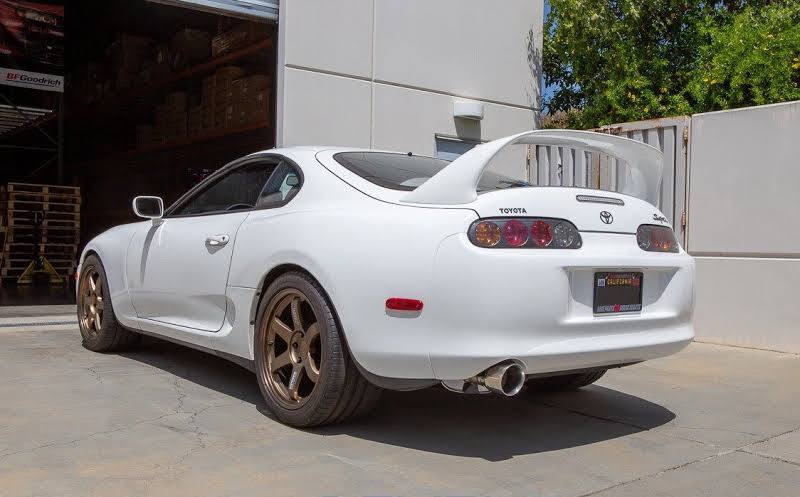

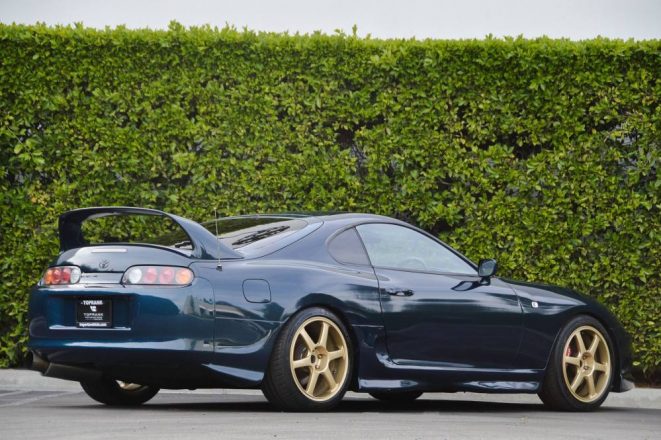

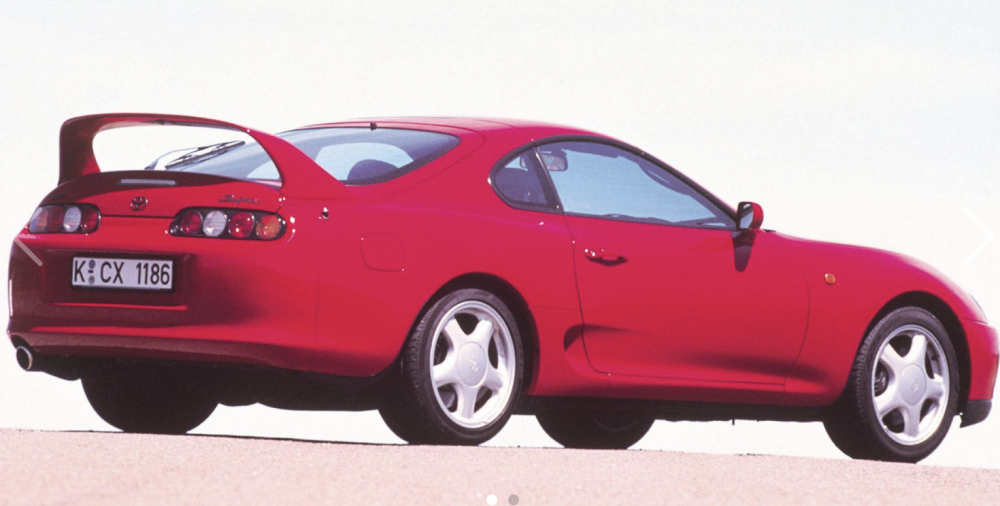

1993 Toyota Supra Twin Turbo
MODEL YEAR: 1993
Park in your virtuagarage
Data Quality
-
Contributors
sebastian_1
gold standardSpecifications
Body style
Coupé
no.Doors
2
Wheelbase
2550 mm
Lenght
4510 mm
Width
1810 mm
Height
1270 mm
Curb Weight
1556 Kg
Wheel Drive
Rear
Engine Location
Front
Seating capacity (number)
2+2
Track Tread (front)
1521 mm
Track Tread (rear)
1527 mm
Weight distribution (FRONT)
52 %
Engine Alignment
Longitudinal
Improve these informations
Found a typo or an error?Want to improve, modify the data of this car or create a variant? Edit it.
Anyone can improve data info on VirtuaGarage. Learn more
Engine
Kind of Engine
Turbocharged
Identificative engine
2JZ-GTE TT
Cylinders Configuration
Straight/Inline Engine
Displacement
2997 cc
Cylinders number
6
Fuel
Petrol
Torque
427 N-m
Torque @ r.p.m.
4000 rpm
Maximum Power (HP)
320 hp
Power (PS)
325 ps
Power kW
240 kW
Power @ rounds per minute
5600 rpm
Bore
86.0 mm
Stroke
86.0 mm
Valve Train
Double overhead camshaft DOHC
Compression Ratio
8.5:1
Engine block material
Cast Iron
Cylinder head material
Alluminium
Fuel System
toyota tccs fuel injection
Coolant
Water
Drivetrain
Front Brakes
Ventilated Disc
Transmission type
6 speed manual
Fuel capacity
80 litres
Suspensions Front
Double wishbones, Independent, Anti Roll Bar, Coil springs
Suspensions Rear
Multi Link (integral link), Independent, Anti Roll Bar, Coil springs
Steering
power assisted rack & pinion
Final Drive Gear Ratio
3.27
Front tyres dimensions
235/45ZR-17
Rear tyres dimensions
255/40ZR-17
Wheel Size (front)
8 x 17
Wheel Size (rear)
9.5 x 17
Front Brakes diameter
323 mm
Rear Brakes diameter
324 mm
Turning circle
10.8 m
Lubrication
wet-sump
Performances
Top Speed
268 kmh
Acceleration 0-100 km/h
5.3s sec
Acceleration 0-60 mp/h
5.1s sec
Standing km
23.9s sec
Standing quarter mile
13.6s - 13.8s @ 105mph- 109mph sec
Consumption city
12 l/100km
Consumption mixed
11.5 l/100km
Consumption heavy
8.3 l/100km
