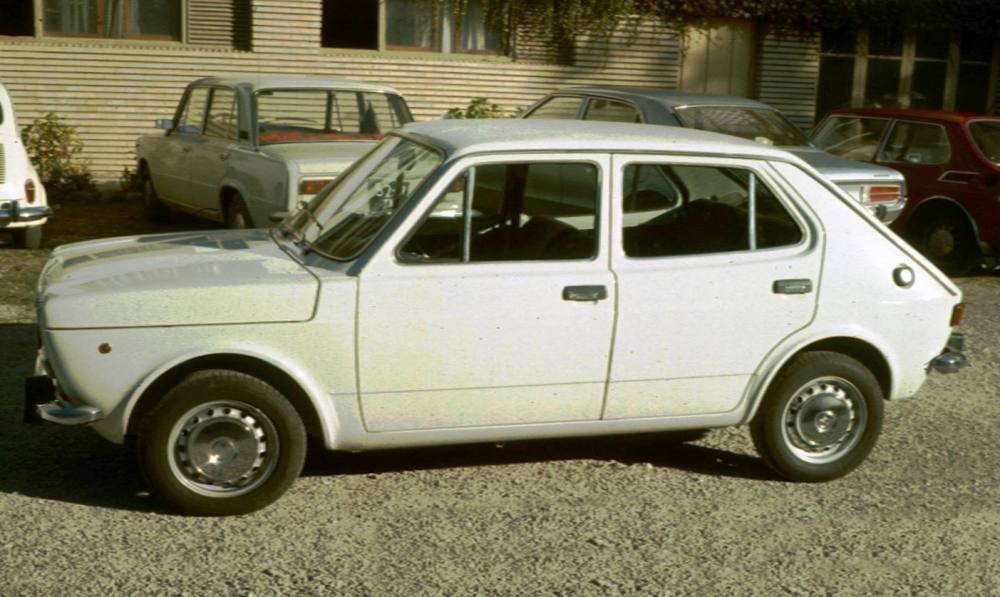

1974 Seat 127 4 doors
MODEL YEAR: 1974
Park in your virtuagarage
Data Q.
B
Contributors
No revisions
Specifications
Body style
Sedan
no.Doors
4
Wheelbase
2225 mm
Lenght
3635 mm
Width
1527 mm
Height
1360 mm
Curb Weight
688 Kg
Wheel Drive
Front
Engine Location
Front
Seating capacity (number)
4
Track Tread (front)
1280 mm
Track Tread (rear)
1290 mm
Weight distribution (FRONT)
62 %
Engine Alignment
Transverse
Improve these informations Found a typo or an error?
Want to improve, modify the data of this car or create a variant? Edit it.
Anyone can improve data info on VirtuaGarage. Learn more
Engine
Kind of Engine
Naturally aspirated
Cylinders Configuration
Straight/Inline Engine
Displacement
903 cc
Cylinders number
4
Fuel
Petrol
Torque
64 N-m
Torque @ r.p.m.
3000 rpm
Maximum Power (HP)
45 hp
Power (PS)
45.6 ps
Power kW
33.6 kW
Bore
65 mm
Stroke
68 mm
Valve Train
Overhead valves OHV
Compression Ratio
9:1
Engine block material
Cast Iron
Cylinder head material
Alluminium
Fuel System
1 weber carburetor
Coolant
Water
Engine Data accuracy
B
Drivetrain
Front Brakes
Disc
Rear Brakes
Drum
Transmission type
4 speed manual
Fuel capacity
30 litres
Suspensions Front
Independent, Anti Roll Bar, Coil springs, Swinging Arms
Suspensions Rear
Wishbone, Independent, Anti Roll Bar, Swinging Arms
Steering
Rack and pinion
Front tyres dimensions
135-13
Rear tyres dimensions
135-13
Wheel Size (front)
4.00x13
Wheel Size (rear)
4.00x13
Clutch
Single dry-clutch friction disc
Cars mounting the same engine (other makes)

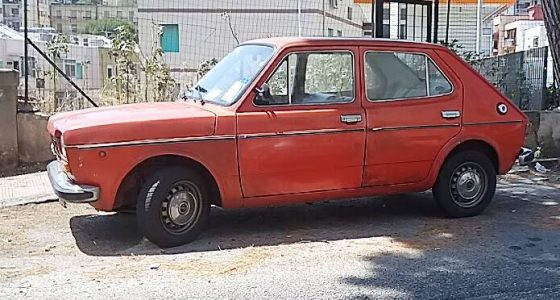

1975 Fiat 127 Special1975 Fiat 127 Special 3 doors1976 Fiat 127 Special 4 doors
Performances
Top Speed
135 kmh
Standing quarter mile
20.4 s sec
Assembly site(s)
Related people
Linked Cars
Renamed in other markets as
Model timeline
Production started
In this year the production started.
Model year
Production ended
Ending production
Generic information relative to SEAT 127 First Series
