Generation

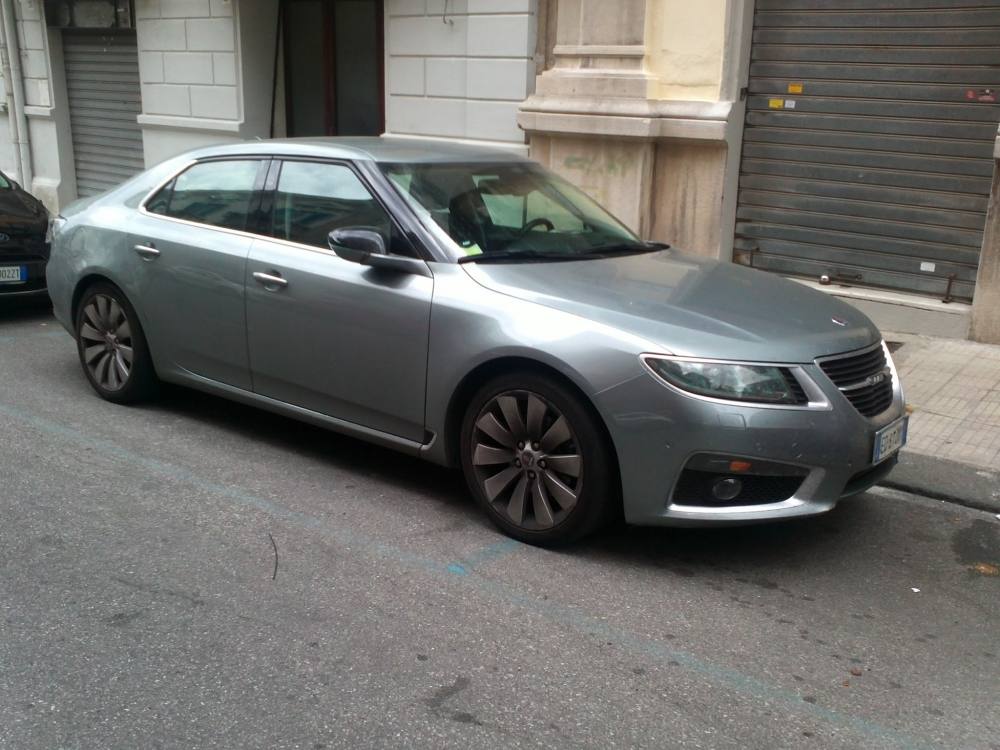

Saab 9-5 2nd GEN YS3G
Produced from 2010 to 2012
Generation of Saab 9-5
Produced from 2010 to 2012
Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
---|---|---|---|---|---|---|---|---|---|
Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
2010 | 2009 Saab 9-5 2.0 TTiD | Diesel | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.0 TiD Automatic | Diesel | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.0T Automatic | Petrol | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.0 TTiD XWD | Diesel | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.0T XWD | Petrol | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.0 TiD | Diesel | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.0T | Petrol | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 1.6T | Petrol | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.0T XWD Automatic | Petrol | Sedan | FWD | - | 1 | E | ||
2010 | 2009 Saab 9-5 2.8T | Petrol | Sedan | FWD | - | 1 | E |
Id.Engine | 1956 cc | 1956 cc | 1956 cc | 1956 cc |
---|---|---|---|---|
Kind of Engine | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
Identificative engine | ||||
Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
Displacement | 1956 cc | 1956 cc | 1956 cc | 1956 cc |
Cylinders number | 4 | 4 | 4 | 4 |
Fuel | Diesel | Diesel | Diesel | Diesel |
Electric engine - kind | ||||
Battery kind | ||||
Peak Power (hp) | ||||
Peak Power (kW) | ||||
Battery power | ||||
Operating Voltage | ||||
Battery: Operating Temperature | ||||
Battery: System Voltage | ||||
Battery: Cell Configuration | ||||
Battery: 0-80% Charge time | ||||
Torque | 350 N-m | 350 N-m | 400 N-m | 400 N-m |
Torque @ r.p.m. | 1750 rpm | 1750 rpm | 1750 rpm | 1750 rpm |
Cylinders angle | ||||
Maximum Power (HP) | 158 hp | 158 hp | 187.5 hp | 187.5 hp |
Power (PS) | 160 ps | 160 ps | 190 ps | 190 ps |
Power kW | 118 kW | 118 kW | 140 kW | 140 kW |
Power @ rounds per minute | 4000 rpm | 4000 rpm | 4000 rpm | 4000 rpm |
Bore | 83 mm | 83 mm | 83 mm | 83 mm |
Stroke | 90.4 mm | 90.4 mm | 90.4 mm | 90.4 mm |
Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
Compression Ratio | 17.5:1 | 16.8:1 | 16.5:1 | 16.5:1 |
Engine block material | ||||
Cylinder head material | ||||
Fuel System | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection |
Coolant | Water | Water | Water | Water |
Engine Data accuracy | ||||
9-5 2.0 TiD | 9-5 2.0 TiD Automatic | 9-5 2.0 TTiD | 9-5 2.0 TTiD XWD |
Id.Engine | 1598 cc | 1998 cc | 1998 cc | 1998 cc | 1998 cc | 2792 cc |
---|---|---|---|---|---|---|
Kind of Engine | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
Identificative engine | ||||||
Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | V Engine |
Displacement | 1598 cc | 1998 cc | 1998 cc | 1998 cc | 1998 cc | 2792 cc |
Cylinders number | 4 | 4 | 4 | 4 | 4 | 6 |
Fuel | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
Electric engine - kind | ||||||
Battery kind | ||||||
Peak Power (hp) | ||||||
Peak Power (kW) | ||||||
Battery power | ||||||
Operating Voltage | ||||||
Battery: Operating Temperature | ||||||
Battery: System Voltage | ||||||
Battery: Cell Configuration | ||||||
Battery: 0-80% Charge time | ||||||
Torque | 230 N-m | 350 N-m | 350 N-m | 350 N-m | 350 N-m | 400 N-m |
Torque @ r.p.m. | 2200 rpm | 2500 rpm | 2500 rpm | 2500 rpm | 2500 rpm | 2000 rpm |
Cylinders angle | 60 | |||||
Maximum Power (HP) | 177.5 hp | 217 hp | 217 hp | 217 hp | 217 hp | 296 hp |
Power (PS) | 180 ps | 220 ps | 220 ps | 220 ps | 220 ps | 300 ps |
Power kW | 132 kW | 162 kW | 162 kW | 162 kW | 162 kW | 221 kW |
Power @ rounds per minute | 5500 rpm | 5300 rpm | 5300 rpm | 5300 rpm | 5300 rpm | 5500 rpm |
Bore | 79 mm | 86 mm | 86 mm | 86 mm | 86 mm | 89 mm |
Stroke | 81.5 mm | 86 mm | 86 mm | 86 mm | 86 mm | 74.8 mm |
Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
Compression Ratio | 8.8:1 | 9.5:1 | 9.5:1 | 9.5:1 | 9.5:1 | 9.5:1 |
Engine block material | ||||||
Cylinder head material | ||||||
Fuel System | bosch motronic me7 fuel injection | bosch motronic med direct petrol injection | bosch motronic med direct petrol injection | bosch motronic med direct petrol injection | bosch motronic med direct petrol injection | bosch motronic me9 fuel injection |
Coolant | Water | Water | Water | Water | Water | Water |
Engine Data accuracy | ||||||
9-5 1.6T | 9-5 2.0T | 9-5 2.0T Automatic | 9-5 2.0T XWD | 9-5 2.0T XWD Automatic | 9-5 2.8T |
Variants | #SED |
---|---|
Body style | Sedan |
no.Doors | |
Wheelbase | 2837 mm |
Lenght | 5008 mm |
Width | 1868 mm |
Height | 1466 mm |
Curb Weight | |
Wheel Drive | |
Engine Location | Front |
Chassis | |
Seating capacity (number) | |
Track Tread (front) | 1585 mm |
Track Tread (rear) | 1585 mm |
Luggage capacity (min) | |
Luggage capacity (max) | |
Weight distribution (FRONT) | |
Engine Alignment | Transverse |
Drag Coefficient | |
Equipment | |
9-5 2.0 TTiD 9-5 2.0 TiD Automatic 9-5 2.0T Automatic 9-5 2.0 TTiD XWD 9-5 2.0T XWD 9-5 2.0 TiD 9-5 2.0T 9-5 1.6T 9-5 2.0T XWD Automatic 9-5 2.8T |
