Generation

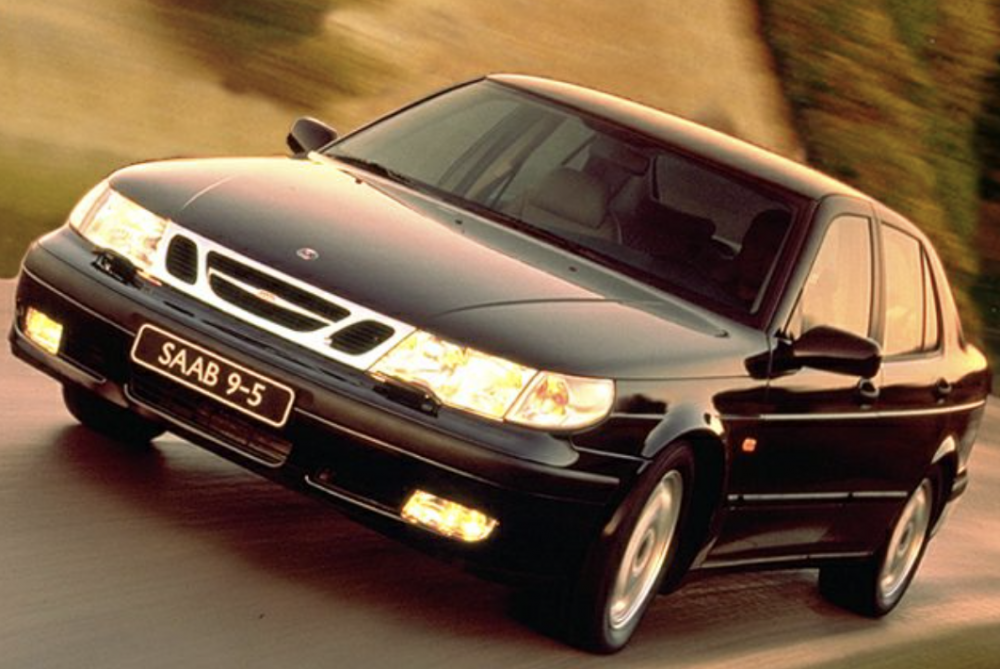

Saab 9-5 1st GEN YS3E
Produced from 1997 to 2010
Generation of Saab 9-5
Informations about
Generation of Saab 9-5
Produced from 1997 to 2010
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
|---|---|---|---|---|---|---|---|---|---|
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
| 2001 | 2001 Saab 9-5 2.3 Turbo Ecopower | Petrol | Sedan | UNK | 250 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 Wagon 2.0t | Petrol | Station Wagon / Estate | UNK | 215 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 Wagon 2.0t Automatic | Petrol | Station Wagon / Estate | UNK | 210 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 Griffin | Petrol | Sedan | UNK | 235 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 2.0 Turbo Ecopower | Petrol | Sedan | UNK | 235 km/h | 1 | E | ||
| 2006 | Saab 9-5 SportCombi 2.3 Turbo Aero Performance by Hirsch Automatic | Petrol | Station Wagon / Estate | UNK | 260 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 2.3t Ecopower Automatic | Petrol | Sedan | UNK | 220 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 2.0t | Petrol | Sedan | UNK | 215 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 2.0t Automatic | Petrol | Sedan | UNK | 210 km/h | 1 | E | ||
| 1999 | 1999 Saab 9-5 2.3t Ecopower | Petrol | Sedan | UNK | 225 km/h | 1 | E | ||
| 2001 | 2001 Saab 9-5 2.3t Ecopower Automatic | Petrol | Sedan | UNK | 225 km/h | 1 | E | ||
| 2001 | 2001 Saab 9-5 3.0 TiD | Diesel | Sedan | UNK | 215 km/h | 1 | E | ||
| 2001 | 2001 Saab 9-5 2.3 Turbo Ecopower Automatic | Petrol | Sedan | UNK | 250 km/h | 1 | E | ||
| 2001 | 2001 Saab 9-5 2.0t Ecopower | Petrol | Sedan | UNK | 215 km/h | 1 | E | ||
| 2001 | 2001 Saab 9-5 2.0t Ecopower Automatic | Petrol | Sedan | UNK | 210 km/h | 1 | E | ||
| 2001 | 2001 Saab 9-5 2.3t Ecopower | Petrol | Sedan | UNK | 230 km/h | 1 | E | ||
| 2006 | Saab 9-5 SportCombi 2.3 Turbo Aero Performance by Hirsch | Petrol | Station Wagon / Estate | UNK | 260 km/h | 1 | E | ||
| 2006 | Saab 9-5 SportCombi 2.3 Turbo Aero Automatic | Petrol | Station Wagon / Estate | UNK | 245 km/h | 1 | E | ||
| 2006 | Saab 9-5 SportCombi 2.3 Turbo Aero | Petrol | Station Wagon / Estate | UNK | 245 km/h | 1 | E | ||
| 2006 | Saab 9-5 2.3 Turbo Aero Performance by Hirsch Automatic | Petrol | Sedan | UNK | 260 km/h | 1 | E | ||
| 2006 | Saab 9-5 2.3 Turbo Aero Performance by Hirsch | Petrol | Sedan | UNK | 260 km/h | 1 | E | ||
| 2006 | Saab 9-5 2.3 Turbo Aero Automatic | Petrol | Sedan | UNK | 250 km/h | 1 | E | ||
| 2006 | Saab 9-5 2.3 Turbo Aero | Petrol | Sedan | UNK | 250 km/h | 1 | E | ||
| 2001 | 2001 Saab 9-5 3.0 V6t Ecopower | Petrol | Sedan | UNK | 235 km/h | 1 | E |
| Id.Engine | 2958 cc |
|---|---|
| Kind of Engine | Turbocharged |
| Identificative engine | |
| Cylinders Configuration | V Engine |
| Displacement | 2958 cc |
| Cylinders number | 6 |
| Fuel | Diesel |
| Electric engine - kind | |
| Battery kind | |
| Peak Power (hp) | |
| Peak Power (kW) | |
| Battery power | |
| Operating Voltage | |
| Battery: Operating Temperature | |
| Battery: System Voltage | |
| Battery: Cell Configuration | |
| Battery: 0-80% Charge time | |
| Torque | 350 N-m |
| Torque @ r.p.m. | 1800-3000 rpm |
| Cylinders angle | |
| Maximum Power (HP) | 174 hp |
| Power (PS) | |
| Power kW | 130 kW |
| Power @ rounds per minute | 4000 rpm |
| Bore | 87.5 mm |
| Stroke | 82 mm |
| Valve Train | Double overhead camshaft DOHC |
| Compression Ratio | 18:1 |
| Engine block material | |
| Cylinder head material | |
| Fuel System | diesel direct inj. |
| Coolant | Water |
| Engine Data accuracy | |
| 9-5 3.0 TiD |
| Id.Engine | 1985 cc | 1985 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2962 cc | 2962 cc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kind of Engine | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Identificative engine | ||||||||||||||||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | V Engine | V Engine |
| Displacement | 1985 cc | 1985 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2290 cc | 2962 cc | 2962 cc |
| Cylinders number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 |
| Fuel | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Electric engine - kind | ||||||||||||||||
| Battery kind | ||||||||||||||||
| Peak Power (hp) | ||||||||||||||||
| Peak Power (kW) | ||||||||||||||||
| Battery power | ||||||||||||||||
| Operating Voltage | ||||||||||||||||
| Battery: Operating Temperature | ||||||||||||||||
| Battery: System Voltage | ||||||||||||||||
| Battery: Cell Configuration | ||||||||||||||||
| Battery: 0-80% Charge time | ||||||||||||||||
| Torque | 240 N-m | 300 N-m | 280 N-m | 350 N-m | 280 N-m | 280 N-m | 350 N-m | 350 N-m | 350 N-m | 350 N-m | 400 N-m | 400 N-m | 400 N-m | 400 N-m | 310 N-m | 310 N-m |
| Torque @ r.p.m. | 1800-3500 rpm | 3500 rpm | 1800-3500 rpm | 1900-4000 rpm | 1800 rpm | 1800 rpm | 1900 rpm | 1900 rpm | 1900 rpm | 1900 rpm | 2000 rpm | 2000 rpm | 2000 rpm | 2000 rpm | 2500-4000 rpm | 2500 rpm |
| Cylinders angle | ||||||||||||||||
| Maximum Power (HP) | 148 hp | 188 hp | 182 hp | 247 hp | 168 hp | 168 hp | 256 hp | 256 hp | 256 hp | 256 hp | 295.5 hp | 295.5 hp | 295.5 hp | 295.5 hp | 197 hp | 197 hp |
| Power (PS) | 150 ps | 191 ps | 170 ps | 170 ps | 260 ps | 260 ps | 260 ps | 260 ps | 300 ps | 300 ps | 300 ps | 300 ps | 200 ps | |||
| Power kW | 110 kW | 140 kW | 136 kW | 184 kW | 125 kW | 125 kW | 191 kW | 191 kW | 191 kW | 191 kW | 220 kW | 220 kW | 220 kW | 220 kW | 147 kW | 147 kW |
| Power @ rounds per minute | 5500 rpm | 5000 rpm | 5500 rpm | 5300 rpm | 5500 rpm | 5500 rpm | 5200 rpm | 5200 rpm | 5200 rpm | 5200 rpm | 5500 rpm | 5500 rpm | 5500 rpm | 5500 rpm | 5000 rpm | 5000 rpm |
| Bore | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 86 mm | 86 mm |
| Stroke | 78 mm | 78 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 85 mm | 85 mm |
| Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
| Compression Ratio | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.3:1 | 9.5:1 | 9.5:1 |
| Engine block material | ||||||||||||||||
| Cylinder head material | ||||||||||||||||
| Fuel System | efi | efi | efi | efi | efi | efi | efi | efi | efi | efi | efi | efi | efi | efi | efi | efi |
| Coolant | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water |
| Engine Data accuracy | D | |||||||||||||||
| 9-5 Wagon 2.0t 9-5 Wagon 2.0t Automatic 9-5 2.0t 9-5 2.0t Automatic 9-5 2.0t Ecopower 9-5 2.0t Ecopower Automatic | 9-5 2.0 Turbo Ecopower | 9-5 2.3t Ecopower Automatic 9-5 2.3t Ecopower | 9-5 2.3 Turbo Ecopower 9-5 2.3 Turbo Ecopower Automatic | 9-5 2.3t Ecopower | 9-5 2.3t Ecopower Automatic | 9-5 2.3 Turbo Aero | 9-5 2.3 Turbo Aero Automatic | 9-5 SportCombi 2.3 Turbo Aero | 9-5 SportCombi 2.3 Turbo Aero Automatic | 9-5 2.3 Turbo Aero Performance by Hirsch | 9-5 2.3 Turbo Aero Performance by Hirsch Automatic | 9-5 SportCombi 2.3 Turbo Aero Performance by Hirsch | 9-5 SportCombi 2.3 Turbo Aero Performance by Hirsch Automatic | 9-5 3.0 V6t Ecopower | 9-5 Griffin |
| Variants | #SED | #SED | #SED | #SED | #SWG | #SWG | #SWG |
|---|---|---|---|---|---|---|---|
| Body style | Sedan | Sedan | Sedan | Sedan | Station Wagon / Estate | Station Wagon / Estate | Station Wagon / Estate |
| no.Doors | |||||||
| Wheelbase | 2703 mm | 2703 mm | 2703 mm | 2703 mm | 2703 mm | 2703 mm | 2703 mm |
| Lenght | 4805 mm | 4827 mm | 4836 mm | 4836 mm | 4808 mm | 4841 mm | 4841 mm |
| Width | 1792 mm | 1792 mm | 1792 mm | 1792 mm | 1792 mm | 1792 mm | 1792 mm |
| Height | 1449 mm | 1449 mm | 1468 mm | 1468 mm | 1497 mm | 1449 mm | 1449 mm |
| Curb Weight | |||||||
| Wheel Drive | |||||||
| Engine Location | Front | Front | Front | Front | Front | Front | Front |
| Chassis | |||||||
| Seating capacity (number) | |||||||
| Track Tread (front) | 1522 mm | 1522 mm | 1522 mm | 1530 mm | 1522 mm | 1522 mm | 1530 mm |
| Track Tread (rear) | 1522 mm | 1522 mm | 1522 mm | 1530 mm | 1522 mm | 1522 mm | 1530 mm |
| Luggage capacity (min) | |||||||
| Luggage capacity (max) | |||||||
| Weight distribution (FRONT) | |||||||
| Engine Alignment | Transverse | Transverse | Transverse | Transverse | Transverse | Transverse | Transverse |
| Drag Coefficient | |||||||
| Equipment | |||||||
| 9-5 Griffin 9-5 2.0 Turbo Ecopower 9-5 2.3t Ecopower Automatic 9-5 2.0t 9-5 2.0t Automatic 9-5 2.3t Ecopower | 9-5 2.3 Turbo Ecopower 9-5 2.3t Ecopower Automatic 9-5 3.0 TiD 9-5 2.3 Turbo Ecopower Automatic 9-5 2.0t Ecopower 9-5 2.0t Ecopower Automatic 9-5 2.3t Ecopower 9-5 3.0 V6t Ecopower | 9-5 2.3 Turbo Aero Automatic 9-5 2.3 Turbo Aero | 9-5 2.3 Turbo Aero Performance by Hirsch Automatic 9-5 2.3 Turbo Aero Performance by Hirsch | 9-5 Wagon 2.0t 9-5 Wagon 2.0t Automatic | 9-5 SportCombi 2.3 Turbo Aero Automatic 9-5 SportCombi 2.3 Turbo Aero | 9-5 SportCombi 2.3 Turbo Aero Performance by Hirsch Automatic 9-5 SportCombi 2.3 Turbo Aero Performance by Hirsch |
