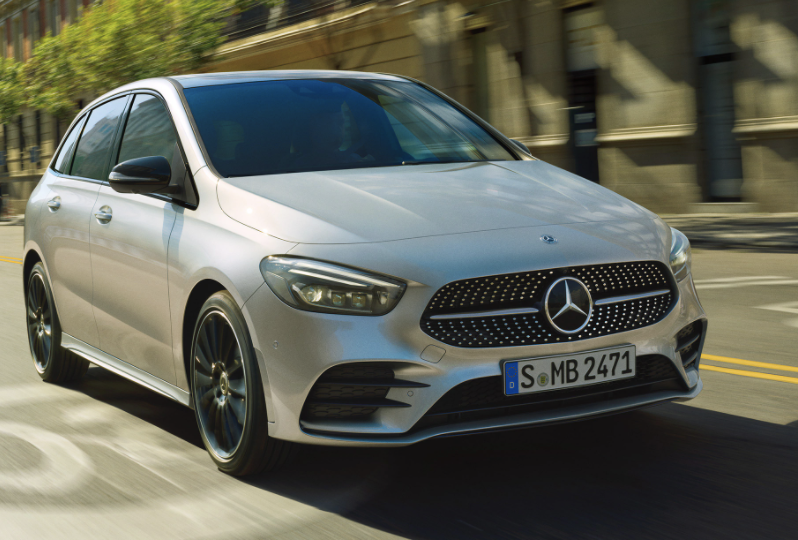

Mercedes Benz B-Class W247 3rd GEN

Generation of Mercedes Benz B-Class
Produced from 2018


Upload an image
HOME » Mercedes-Benz » Mercedes Benz B-Class » Mercedes Benz B-Class W247 3rd GEN

Informations about (**)

End of production

Trim Levels/Versions 5

YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
2018 Mercedes-Benz B 180 d (2018) Diesel HatchbackFWD 200 km/h 1
D
2018 Mercedes-Benz B 220 d (2018) Diesel HatchbackFWD 234 km/h 1
D
2018 Mercedes-Benz B 200 d (2018) Diesel HatchbackFWD 219 km/h 1
D
2018 Mercedes-Benz B 180 (2018) Petrol HatchbackFWD 212 km/h 1
D
2018 Mercedes-Benz B 200 (2018) Petrol HatchbackFWD 223 km/h 1
D

Engines (5)

» Diesel Engines
Id.Engine1461 cc1950 cc1950 cc
Kind of EngineTurbochargedTurbochargedTurbocharged
Identificative engineOM 642q OM 654q
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1461 cc1950 cc1950 cc
Cylinders number4 4 4
FuelDieselDieselDiesel
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque260 N-m320 N-m400 N-m
Torque @ r.p.m.1750-2500 rpm1400-3200 rpm1600-2600 rpm
Cylinders angle
Maximum Power (HP)114 hp148 hp187.5 hp
Power (PS)116 ps150 ps190 ps
Power kW85 kW110 kW140 kW
Power @ rounds per minute4000 rpm3400-4400 rpm3800 rpm
Bore76 mm82 mm82 mm
Stroke80.5 mm92.3 mm92.3 mm
Valve TrainSingle overhead camshaft SOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHC
Compression Ratio15.1:1 15.5:1 15.5:1
Engine block material
Cylinder head material
Fuel Systemcommon rail direct diesel injectioncommon rail direct diesel injectioncommon rail direct diesel injection
CoolantWaterWaterWater
Engine Data accuracy
B 180 d
B 200 d
B 220 d
» Petrol Engines
Id.Engine1332 cc1332 cc
Kind of EngineTurbochargedTurbocharged
Identificative engineM 282 M 282
Cylinders ConfigurationStraight/Inline EngineStraight/Inline Engine
Displacement1332 cc1332 cc
Cylinders number4 4
FuelPetrolPetrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque200 N-m250 N-m
Torque @ r.p.m.1460 rpm1620 rpm
Cylinders angle
Maximum Power (HP)134 hp161 hp
Power (PS)136 ps163 ps
Power kW100 kW120 kW
Power @ rounds per minute5500 rpm5500 rpm
Bore72.2 mm72.2 mm
Stroke81.4 mm81.4 mm
Valve TrainDouble overhead camshaft DOHCDouble overhead camshaft DOHC
Compression Ratio10.6:1 10.6:1
Engine block material
Cylinder head material
Fuel Systemefiefi
CoolantWaterWater
Engine Data accuracy
B 180
B 200

Car body variants (1)

HAT
Variants#HAT
Body styleHatchback
no.Doors
Wheelbase2729 mm
Lenght4419 mm
Width1796 mm
Height1562 mm
Curb Weight
Wheel Drive
Engine LocationFront
Chassis
Seating capacity (number)
Track Tread (front)1567 mm
Track Tread (rear)1547 mm
Luggage capacity (min)
Luggage capacity (max)
Weight distribution (FRONT)
Engine AlignmentTransverse
Drag Coefficient
Equipment
B 180 d
B 220 d
B 200 d
B 180
B 200
