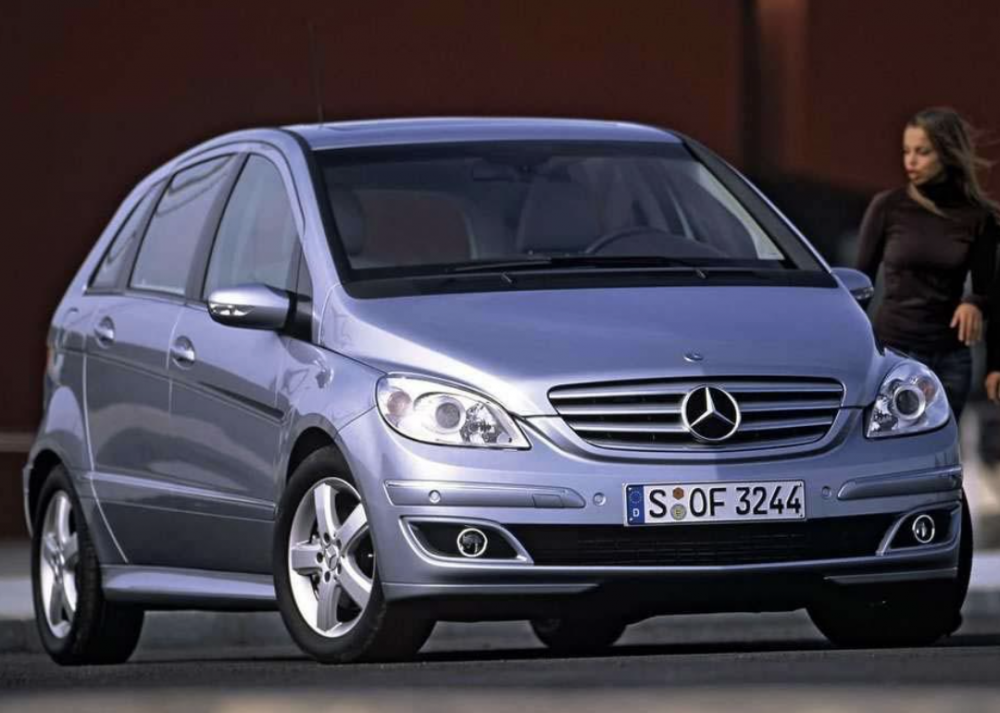

Mercedes Benz B-Class W245 1st GEN

Generation of Mercedes Benz B-Class
Produced from 2005 to 2011


Upload an image
HOME » Mercedes-Benz » Mercedes Benz B-Class » Mercedes Benz B-Class W245 1st GEN

Informations about (**)

End of production

Trim Levels/Versions 13

YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
2008 2008 Mercedes-Benz B 200 CDI T 245 Diesel Hatchback - 1
E
2008 2008 Mercedes-Benz B 200 T 245 Petrol Hatchback - 1
E
2008 2008 Mercedes-Benz B 180 CDI T 245 Diesel Hatchback - 1
E
2008 2008 Mercedes-Benz B 200 TURBO T 245 Petrol Hatchback - 1
E
2005 2005 Mercedes-Benz B 200 Turbo W 169 Petrol HatchbackUNK 225 km/h 1
E
2005 2005 Mercedes-Benz B 200 CDi W 169 Diesel HatchbackUNK 200 km/h 1
E
2005 2005 Mercedes-Benz B 200 W 169 Petrol HatchbackUNK 196 km/h 1
E
2005 2005 Mercedes-Benz B 180 CDi W 169 Diesel HatchbackUNK 183 km/h 1
E
2005 2005 Mercedes-Benz B 170 W 169 Petrol Hatchback - 1
E
2005 2005 Mercedes-Benz B 150 W 169 Petrol HatchbackUNK 174 km/h 1
E
2008 2008 Mercedes-Benz B 150 T 245 Petrol Hatchback - 1
E
2008 2008 Mercedes-Benz B 170 T 245 Petrol Hatchback - 1
E
2008 2008 Mercedes-Benz B 170 NGT T 245 Gas (Liquefied petroleum gas) Hatchback - 1
E

Engines (13)

» Diesel Engines
Id.Engine1991 cc1991 cc1991 cc1991 cc
Kind of EngineTurbochargedTurbochargedTurbochargedTurbocharged
Identificative engine
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1991 cc1991 cc1991 cc1991 cc
Cylinders number4 4 4 4
FuelDieselDieselDieselDiesel
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque250 N-m250 N-m300 N-m300 N-m
Torque @ r.p.m. 1600-2600 rpm 1600-2600 rpm 1600-3000 rpm 1600-3000 rpm
Cylinders angle
Maximum Power (HP)107 hp107.5 hp138 hp138 hp
Power (PS)108 ps109 ps140 ps140 ps
Power kW80 kW80 kW103 kW103 kW
Power @ rounds per minute4200 rpm4200 rpm4200 rpm4200 rpm
Bore83 mm83 mm83 mm83 mm
Stroke92 mm92 mm92 mm92 mm
Valve TrainDouble overhead camshaft DOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHC
Compression Ratio18:1 18:1 18:1 18:1
Engine block material
Cylinder head material
Fuel Systemcommon rail direct diesel injectioncommon rail direct diesel injectioncommon rail direct diesel injectioncommon rail direct diesel injection
CoolantWaterotherWaterother
Engine Data accuracy
D
B 180 CDi
B 180 CDI
B 200 CDi
B 200 CDI
» Gas (Liquefied petroleum gas) Engines
Id.Engine2034 cc
Kind of EngineNaturally aspirated
Identificative engine
Cylinders ConfigurationStraight/Inline Engine
Displacement2034 cc
Cylinders number4
FuelGas (Liquefied petroleum gas)
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque165 N-m
Torque @ r.p.m. 3500-4000 rpm
Cylinders angle
Maximum Power (HP)114 hp
Power (PS)116 ps
Power kW85 kW
Power @ rounds per minute5750 rpm
Bore83 mm
Stroke94 mm
Valve TrainSingle overhead camshaft SOHC
Compression Ratio11:1
Engine block material
Cylinder head material
Fuel Systemefi
Coolantother
Engine Data accuracy
B 170 NGT
» Petrol Engines
Id.Engine1498 cc1498 cc1699 cc1699 cc2034 cc2034 cc2034 cc2034 cc
Kind of EngineNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspiratedTurbochargedTurbocharged
Identificative engine
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1498 cc1498 cc1699 cc1699 cc2034 cc2034 cc2034 cc2034 cc
Cylinders number4 4 4 4 4 4 4 4
FuelPetrolPetrolPetrolPetrolPetrolPetrolPetrolPetrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque140 N-m140 N-m155 N-m155 N-m185 N-m185 N-m280 N-m280 N-m
Torque @ r.p.m. 3500-4000 rpm 3500-4000 rpm 3500-4000 rpm 3500-4000 rpm 3500-4000 rpm 3500-4000 rpm 1800-4850 rpm 1800-4850 rpm
Cylinders angle
Maximum Power (HP)94 hp94 hp114 hp114 hp134 hp134 hp190 hp190 hp
Power (PS)95 ps95 ps116 ps116 ps136 ps136 ps193 ps193 ps
Power kW70 kW70 kW85 kW85 kW100 kW100 kW142 kW142 kW
Power @ rounds per minute5200 rpm5200 rpm5500 rpm5500 rpm5750 rpm5500 rpm5000 rpm5000 rpm
Bore83 mm83 mm83 mm83 mm83 mm83 mm83 mm83 mm
Stroke69.2 mm69.2 mm78.5 mm78.5 mm94 mm94 mm94 mm94 mm
Valve TrainSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHC
Compression Ratio11:1 11:1 11:1 11:1 11:1 11:1 9:1 9:1
Engine block material
Cylinder head material
Fuel Systembo hfm fuel injectionefibo hfm fuel injectionefibo hfm fuel injectionefibo hfm fuel injectionefi
CoolantWaterotherWaterotherWaterotherWaterother
Engine Data accuracy
B 150
B 150
B 170
B 170
B 200
B 200
B 200 Turbo
B 200 TURBO

Car body variants (1)

HAT
Variants#HAT
#HAT
#HAT
#HAT
Body styleHatchbackHatchbackHatchbackHatchback
no.Doors
Wheelbase2778 mm2778 mm2778 mm2778 mm
Lenght4270 mm4270 mm4273 mm4273 mm
Width1777 mm1777 mm1777 mm1777 mm
Height1603 mm1604 mm1603 mm1604 mm
Curb Weight
Wheel Drive
Engine LocationFrontFrontFrontFront
Chassis
Seating capacity (number)
Track Tread (front)1556 mm1552 mm1556 mm1552 mm
Track Tread (rear)1551 mm1547 mm1551 mm1547 mm
Luggage capacity (min)
Luggage capacity (max)
Weight distribution (FRONT)
Engine AlignmentTransverseTransverseTransverseTransverse
Drag Coefficient
Equipment
B 170
B 150
B 200 Turbo
B 200 CDi
B 200
B 180 CDi
B 150
B 170
B 170 NGT
B 200 CDI
B 200
B 180 CDI
B 200 TURBO
