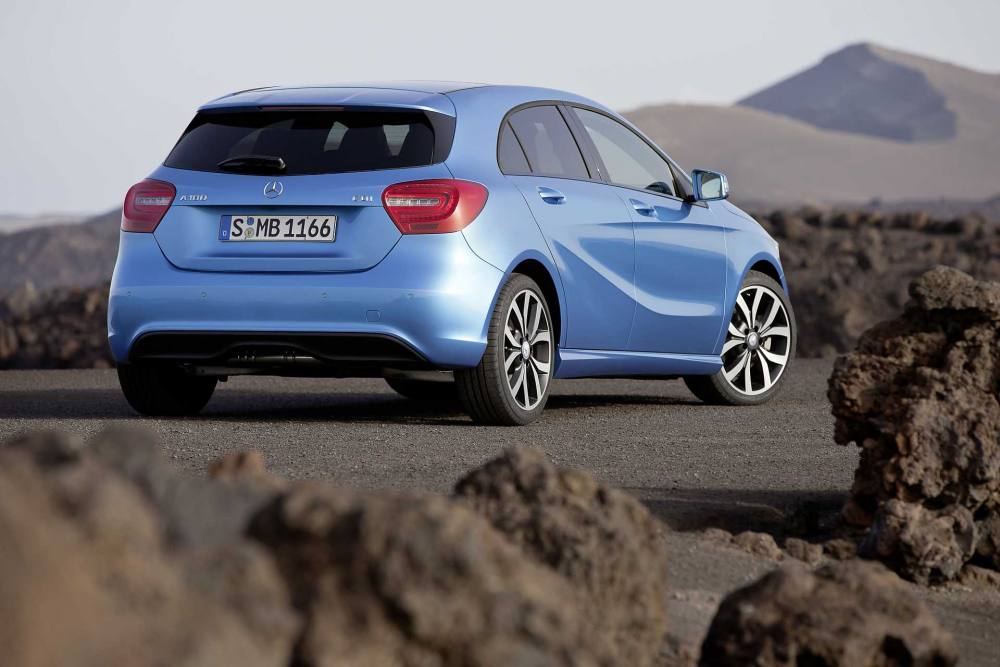

Mercedes-Benz A-Class W176 (2013)
Generation of Mercedes-Benz A-Class
Produced from 2013 to 2018
Upload an image
Upload an image
Informations about (**)
End of production
Trim Levels/Versions 36
Engines (22)
» Diesel Engines
| Id.Engine | 1461 cc | 1461 cc | 1461 cc | 1796 cc | 1796 cc | 1796 cc | 2143 cc | 2143 cc | 2143 cc |
|---|---|---|---|---|---|---|---|---|---|
| Kind of Engine | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Identificative engine | om 607 | om 651 | om 651 | om 651 | |||||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1461 cc | 1461 cc | 1461 cc | 1796 cc | 1796 cc | 1796 cc | 2143 cc | 2143 cc | 2143 cc |
| Cylinders number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Electric engine - kind | |||||||||
| Battery kind | |||||||||
| Peak Power (hp) | |||||||||
| Peak Power (kW) | |||||||||
| Battery power | |||||||||
| Operating Voltage | |||||||||
| Battery: Operating Temperature | |||||||||
| Battery: System Voltage | |||||||||
| Battery: Cell Configuration | |||||||||
| Battery: 0-80% Charge time | |||||||||
| Torque | 240 N-m | 260 N-m | 260 N-m | 250 N-m | 300 N-m | 300 N-m | 300 N-m | 350 N-m | 350 N-m |
| Torque @ r.p.m. | 1700-2500 rpm | 1750-2500 rpm | 1750-2500 rpm | 1400-2800 rpm | 1600-3000 rpm | 1600-3000 rpm | 1400-3000 rpm | 1600-3000 rpm | 1400-3400 rpm |
| Cylinders angle | |||||||||
| Maximum Power (HP) | 89 hp | 107.5 hp | 107.5 hp | 107.5 hp | 134 hp | 134 hp | 134 hp | 168 hp | 175 hp |
| Power (PS) | 90 ps | 109 ps | 109 ps | 109 ps | 136 ps | 136 ps | 136 ps | 170 ps | 177 ps |
| Power kW | 66 kW | 80 kW | 80 kW | 80 kW | 100 kW | 100 kW | 100 kW | 125 kW | 130 kW |
| Power @ rounds per minute | 2750-4000 rpm | 4000 rpm | 4000 rpm | 3200-4600 rpm | 3600-4400 rpm | 3600-4400 rpm | 3200-4000 rpm | 3600-4000 rpm | 3600-3800 rpm |
| Bore | 76 mm | 76 mm | 76 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stroke | 80.5 mm | 80.5 mm | 80.5 mm | 83 mm | 83 mm | 83 mm | 99 mm | 99 mm | 99 mm |
| Valve Train | Single overhead camshaft SOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
| Compression Ratio | 16:1 | 15.5:1 | 16:1 | 16.2:1 | 16.2:1 | 16.2:1 | 16.2:1 | ||
| Engine block material | |||||||||
| Cylinder head material | |||||||||
| Fuel System | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection |
| Coolant | Water | Water | Water | Water | Water | Water | Water | Water | Water |
| Engine Data accuracy | |||||||||
| A 160 d Automatic A 160 d | A 180 CDI BlueEFFICIENCY | A 180 d BlueEFFICIENCY Edition A 180 d Automatic A 180 d | A 180 CDI BlueEFFICIENCY Automatic | A 200 CDI BlueEFFICIENCY | A 200 CDI BlueEFFICIENCY Automatic | A 200 d Automatic A 200 d 4MATIC A 200 d | A 220 CDI BlueEFFICIENCY | A 220 d 4MATIC A 220 d |
» Petrol Engines
| Id.Engine | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kind of Engine | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Identificative engine | m 270 | m 270 | m 270 | m 270 | |||||||||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1595 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc |
| Cylinders number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Electric engine - kind | |||||||||||||
| Battery kind | |||||||||||||
| Peak Power (hp) | |||||||||||||
| Peak Power (kW) | |||||||||||||
| Battery power | |||||||||||||
| Operating Voltage | |||||||||||||
| Battery: Operating Temperature | |||||||||||||
| Battery: System Voltage | |||||||||||||
| Battery: Cell Configuration | |||||||||||||
| Battery: 0-80% Charge time | |||||||||||||
| Torque | 180 N-m | 200 N-m | 200 N-m | 200 N-m | 250 N-m | 250 N-m | 250 N-m | 300 N-m | 300 N-m | 300 N-m | 350 N-m | 350 N-m | 475 N-m |
| Torque @ r.p.m. | 1200-3500 rpm | 1250-4000 rpm | 1250-4000 rpm | 1250-4000 rpm | 1250-4000 rpm | 1250-4000 rpm | 1250-4000 rpm | 1200-4000 rpm | 1200-4000 rpm | 1200-4000 rpm | 1200-4000 rpm | 1200-4000 rpm | 2250-5000 rpm |
| Cylinders angle | |||||||||||||
| Maximum Power (HP) | 101 hp | 120 hp | 120.5 hp | 120.5 hp | 154 hp | 154 hp | 154 hp | 181 hp | 208 hp | 208 hp | 208 hp | 215 hp | 376 hp |
| Power (PS) | 102 ps | 122 ps | 122 ps | 122 ps | 156 ps | 156 ps | 156 ps | 184 ps | 211 ps | 211 ps | 211 ps | 218 ps | 381 ps |
| Power kW | 75 kW | 89 kW | 90 kW | 90 kW | 115 kW | 115 kW | 115 kW | 135 kW | 155 kW | 155 kW | 155 kW | 160 kW | 280 kW |
| Power @ rounds per minute | 4500-6000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | 5000 rpm | 5300 rpm | 5500 rpm | 5500 rpm | 5500 rpm | 5500 rpm | 5500 rpm | 6000 rpm |
| Bore | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stroke | 73.7 mm | 73.7 mm | 73.7 mm | 73.7 mm | 73.7 mm | 73.7 mm | 73.7 mm | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm |
| Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
| Compression Ratio | 10.3:1 | 10.3:1 | 10.3:1 | 10.3:1 | 10.3:1 | 10.3:1 | 10.3:1 | 9.8:1 | 9.8:1 | 9.8:1 | 9.8:1 | 9.8:1 | |
| Engine block material | |||||||||||||
| Cylinder head material | |||||||||||||
| Fuel System | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection | direct petrol injection |
| Coolant | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water | Water |
| Engine Data accuracy | |||||||||||||
| A 160 A 160 Automatic | A 180 Automatic A 180 BlueEFFICIENCY Edition | A 180 BlueEFFICIENCY | A 180 BlueEFFICIENCY Automatic | A 200 BlueEFFICIENCY | A 200 BlueEFFICIENCY Automatic | A 200 Automatic A 180 A 200 | A 220 4MATIC | A 250 BlueEFFICIENCY | A 250 Sport | A 250 4MATIC A 250 A 250 Automatic | A 250 Sport A 250 Sport 4MATIC A 250 Sport Automatic | A 45 AMG 4MATIC |
Car body variants (1)
HAT| Variants | #HAT | #HAT | #HAT | #HAT | #HAT | #HAT | #HAT | #HAT | #HAT | #HAT |
|---|---|---|---|---|---|---|---|---|---|---|
| Body style | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback |
| no.Doors | ||||||||||
| Wheelbase | 2699 mm | 2699 mm | 2699 mm | 2699 mm | 2699 mm | 2699 mm | 2699 mm | 2699 mm | 2699 mm | 2699 mm |
| Lenght | 4292 mm | 4292 mm | 4299 mm | 4299 mm | 4299 mm | 4299 mm | 4299 mm | 4299 mm | 4355 mm | 4367 mm |
| Width | 1780 mm | 1780 mm | 1780 mm | 1780 mm | 1780 mm | 1780 mm | 1780 mm | 1780 mm | 1780 mm | 1780 mm |
| Height | 1433 mm | 1438 mm | 1418 mm | 1438 mm | 1418 mm | 1434 mm | 1434 mm | 1433 mm | 1430 mm | 1417 mm |
| Curb Weight | ||||||||||
| Wheel Drive | ||||||||||
| Engine Location | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front |
| Chassis | ||||||||||
| Seating capacity (number) | ||||||||||
| Track Tread (front) | 1553 mm | 1542 mm | 1553 mm | 1542 mm | 1551 mm | 1549 mm | 1542 mm | 1551 mm | 1553 mm | 1557 mm |
| Track Tread (rear) | 1552 mm | 1541 mm | 1552 mm | 1541 mm | 1552 mm | 1548 mm | 1541 mm | 1552 mm | 1552 mm | 1561 mm |
| Luggage capacity (min) | ||||||||||
| Luggage capacity (max) | ||||||||||
| Weight distribution (FRONT) | ||||||||||
| Engine Alignment | Transverse | Transverse | Transverse | Transverse | Transverse | Transverse | Transverse | Transverse | Transverse | Transverse |
| Drag Coefficient | ||||||||||
| Equipment | ||||||||||
| A 220 CDI BlueEFFICIENCY A 200 CDI BlueEFFICIENCY Automatic A 200 CDI BlueEFFICIENCY A 200 BlueEFFICIENCY Automatic A 200 BlueEFFICIENCY A 180 CDI BlueEFFICIENCY Automatic A 180 CDI BlueEFFICIENCY A 180 BlueEFFICIENCY Automatic A 180 BlueEFFICIENCY | A 250 BlueEFFICIENCY | A 180 BlueEFFICIENCY Edition | A 250 4MATIC A 250 A 250 Automatic A 250 Sport A 250 Sport 4MATIC A 250 Sport Automatic | A 180 d BlueEFFICIENCY Edition | A 220 d 4MATIC A 200 Automatic A 220 d A 200 d Automatic A 200 d 4MATIC A 200 A 200 d | A 220 4MATIC | A 180 Automatic A 160 d Automatic A 180 d Automatic A 180 A 160 A 180 d A 160 d A 160 Automatic | A 250 Sport | A 45 AMG 4MATIC |
