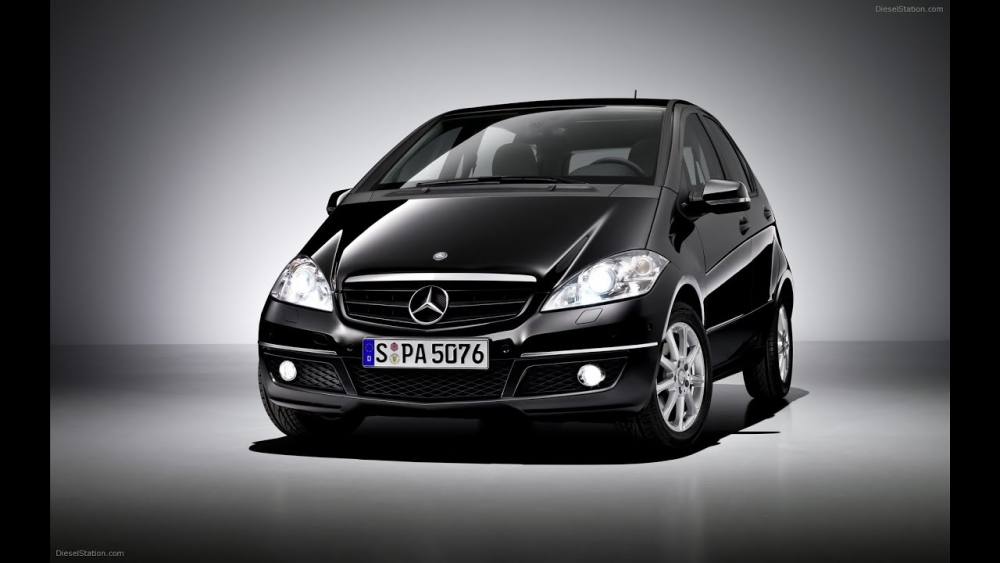

Mercedes-Benz A-Class W169 Update (2008)
Restyling of Mercedes-Benz A-Class
Produced from 2008 to 2012
Upload an image
Upload an image
Informations about (**)
End of production
Trim Levels/Versions 15
Engines (14)
» Diesel Engines
| Id.Engine | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc |
|---|---|---|---|---|---|---|
| Kind of Engine | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Identificative engine | ||||||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc | 1991 cc |
| Cylinders number | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Electric engine - kind | ||||||
| Battery kind | ||||||
| Peak Power (hp) | ||||||
| Peak Power (kW) | ||||||
| Battery power | ||||||
| Operating Voltage | ||||||
| Battery: Operating Temperature | ||||||
| Battery: System Voltage | ||||||
| Battery: Cell Configuration | ||||||
| Battery: 0-80% Charge time | ||||||
| Torque | 180 N-m | 180 N-m | 180 N-m | 250 N-m | 250 N-m | 300 N-m |
| Torque @ r.p.m. | 1400-2600 rpm | 1400-2600 rpm | 1400-2600 rpm | 1600-2600 rpm | 1600-2600 rpm | 1600-3000 rpm |
| Cylinders angle | ||||||
| Maximum Power (HP) | 81 hp | 81 hp | 81 hp | 107.5 hp | 107.5 hp | 138 hp |
| Power (PS) | 82 ps | 82 ps | 82 ps | 109 ps | 109 ps | 140 ps |
| Power kW | 60 kW | 60 kW | 60 kW | 80 kW | 80 kW | 103 kW |
| Power @ rounds per minute | 4200 rpm | 4200 rpm | 4200 rpm | 4200 rpm | 4200 rpm | 4200 rpm |
| Bore | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stroke | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm |
| Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
| Compression Ratio | 18:1 | 18:1 | 18:1 | 18:1 | 18:1 | 18:1 |
| Engine block material | ||||||
| Cylinder head material | ||||||
| Fuel System | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection | common rail direct diesel injection |
| Coolant | other | other | other | other | other | other |
| Engine Data accuracy | D | |||||
| A 160 CDI | A 160 CDI Coupé | A 160 CDI Coupé BlueEFFICIENCY | A 180 CDI | A 180 CDI Coupé | A 200 CDI A 200 CDI Coupé |
» Petrol Engines
| Id.Engine | 1498 cc | 1498 cc | 1699 cc | 1699 cc | 2034 cc | 2034 cc | 2034 cc | 2034 cc |
|---|---|---|---|---|---|---|---|---|
| Kind of Engine | Naturally aspirated | Naturally aspirated | Naturally aspirated | Naturally aspirated | Naturally aspirated | Naturally aspirated | Turbocharged | Turbocharged |
| Identificative engine | ||||||||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1498 cc | 1498 cc | 1699 cc | 1699 cc | 2034 cc | 2034 cc | 2034 cc | 2034 cc |
| Cylinders number | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Electric engine - kind | ||||||||
| Battery kind | ||||||||
| Peak Power (hp) | ||||||||
| Peak Power (kW) | ||||||||
| Battery power | ||||||||
| Operating Voltage | ||||||||
| Battery: Operating Temperature | ||||||||
| Battery: System Voltage | ||||||||
| Battery: Cell Configuration | ||||||||
| Battery: 0-80% Charge time | ||||||||
| Torque | 140 N-m | 140 N-m | 155 N-m | 155 N-m | 185 N-m | 185 N-m | 280 N-m | 280 N-m |
| Torque @ r.p.m. | 3500-4000 rpm | 3500-4000 rpm | 3500-4000 rpm | 3500-4000 rpm | 3500-4000 rpm | 3500-4000 rpm | 1800-4850 rpm | 1800-4850 rpm |
| Cylinders angle | ||||||||
| Maximum Power (HP) | 94 hp | 94 hp | 114 hp | 114 hp | 134 hp | 134 hp | 190 hp | 190 hp |
| Power (PS) | 95 ps | 95 ps | 116 ps | 116 ps | 136 ps | 136 ps | 193 ps | 193 ps |
| Power kW | 70 kW | 70 kW | 85 kW | 85 kW | 100 kW | 100 kW | 142 kW | 142 kW |
| Power @ rounds per minute | 5200 rpm | 5200 rpm | 5500 rpm | 5500 rpm | 5500 rpm | 5500 rpm | 5000 rpm | 5000 rpm |
| Bore | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stroke | 69.2 mm | 69.2 mm | 78.5 mm | 78.5 mm | 94 mm | 94 mm | 94 mm | 94 mm |
| Valve Train | Single overhead camshaft SOHC | Single overhead camshaft SOHC | Single overhead camshaft SOHC | Single overhead camshaft SOHC | Single overhead camshaft SOHC | Single overhead camshaft SOHC | Single overhead camshaft SOHC | Single overhead camshaft SOHC |
| Compression Ratio | 11:1 | 11:1 | 11:1 | 11:1 | 11:1 | 11:1 | 9:1 | 9:1 |
| Engine block material | ||||||||
| Cylinder head material | ||||||||
| Fuel System | efi | efi | efi | efi | efi | efi | efi | efi |
| Coolant | other | other | other | other | other | other | other | other |
| Engine Data accuracy | ||||||||
| A 150 | A 150 Coupé | A 170 | A 170 Coupé | A 200 | A 200 Coupé | A 200 TURBO | A 200 TURBO Coupé |
Car body variants (1)
HAT| Variants | #HAT |
|---|---|
| Body style | Hatchback |
| no.Doors | |
| Wheelbase | 2568 mm |
| Lenght | 3883 mm |
| Width | 1764 mm |
| Height | 1593 mm |
| Curb Weight | |
| Wheel Drive | |
| Engine Location | Front |
| Chassis | |
| Seating capacity (number) | |
| Track Tread (front) | 1556 mm |
| Track Tread (rear) | 1551 mm |
| Luggage capacity (min) | |
| Luggage capacity (max) | |
| Weight distribution (FRONT) | |
| Engine Alignment | Transverse |
| Drag Coefficient | |
| Equipment | |
| A 150 A 150 Coupé A 160 CDI A 160 CDI Coupé A 160 CDI Coupé BlueEFFICIENCY A 170 A 170 Coupé A 180 CDI A 180 CDI Coupé A 200 A 200 CDI A 200 CDI Coupé A 200 Coupé A 200 TURBO A 200 TURBO Coupé |
