1967 Lamborghini Marzal Concept

MODEL YEAR: 1967

Data Quality

-

Contributors

No revisions

Tagged as:

Concept Car
Makes » Lamborghini » 1967 Lamborghini Marzal Concept

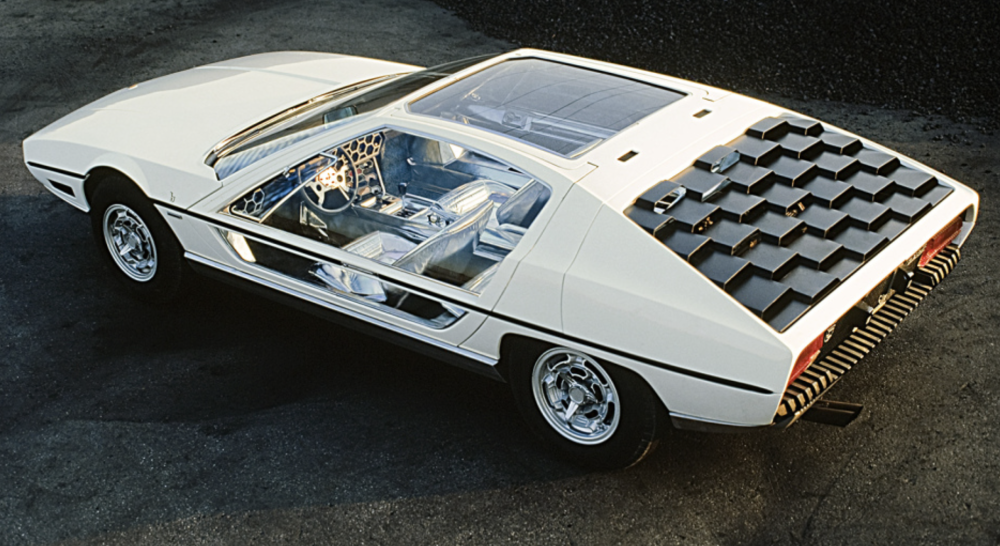

The Lamborghini Marzal is a concept car presented at the 1967 Geneva Motor Show. Designed by Marcello Gandini on behalf of Bertone, it was created with the intention of providing Ferruccio Lamborghini with a four-seater grand tourer.

Among the distinctive features of the car are the gull-wing doors and large glass surfaces, which were manufactured (along with the roof) by the Belgian company Glaverbel. The engine, a 6-cylinder with a displacement of 1,965 cc, was obtained by "cutting" a 12-cylinder engine from the Lamborghini Miura in half. The transmission was 5-speed.

Although the Marzal remained a one-of-a-kind prototype, it served as a stylistic inspiration for the lines of the subsequent Lamborghini Espada. One of the prototypes is currently on display at the museum dedicated to Ferruccio Lamborghini in Dosso, a hamlet of Sant'Agostino, in the province of Ferrara.

The car's name derives from bullfighting, like other models of Lamborghini, in fact Marzal is the name of a breed of bulls used in bullfighting.

Specifications

Body style
Coupé
no.Doors
2
Wheelbase
2650 mm
Lenght
4520 mm
Width
1710 mm
Height
1100 mm
Curb Weight
1210 Kg
Wheel Drive
Missing info
Engine Location
Middle
Seating capacity (number)
2+2
Track Tread (front)
1440 mm
Track Tread (rear)
1440 mm
Engine Alignment
Transverse

Improve these informations

Found a typo or an error?

Want to improve, modify the data of this car or create a variant? Edit it.

Anyone can improve data info on VirtuaGarage. Learn more

Engine

Kind of Engine
Naturally aspirated
Cylinders Configuration
Straight/Inline Engine
Displacement
1965 cc
Cylinders number
6
Fuel
Petrol
Torque
179 N-m
Torque @ r.p.m.
4600 rpm
Maximum Power (HP)
175 hp
Power (PS)
177 ps
Power kW
130 kW
Power @ rounds per minute
6800 rpm
Bore
82 mm
Stroke
62 mm
Valve Train
Double overhead camshaft DOHC
Compression Ratio
9.2:1
Fuel System
3 we 40 dcoe carbs
Coolant
Water

Drivetrain

Front Brakes
Disc
Rear Brakes
Disc
Transmission type
5 speed manual
Fuel capacity
80 litres
Suspensions Front
Macpherson strut with Wishbone, Wishbones, Independent, Anti Roll Bar
Suspensions Rear
Macpherson strut with Wishbone, Wishbones, Independent, Anti Roll Bar
Front tyres dimensions
pirelli cinturat
Rear tyres dimensions
pirelli cinturat
Wheel Size (front)
6½ x 14
Wheel Size (rear)
6½ x 14

Car comparation

  • 1967 Lamborghini Marzal Concept 1 2

Random-similar cars

Performances

Top Speed
190 kmh
