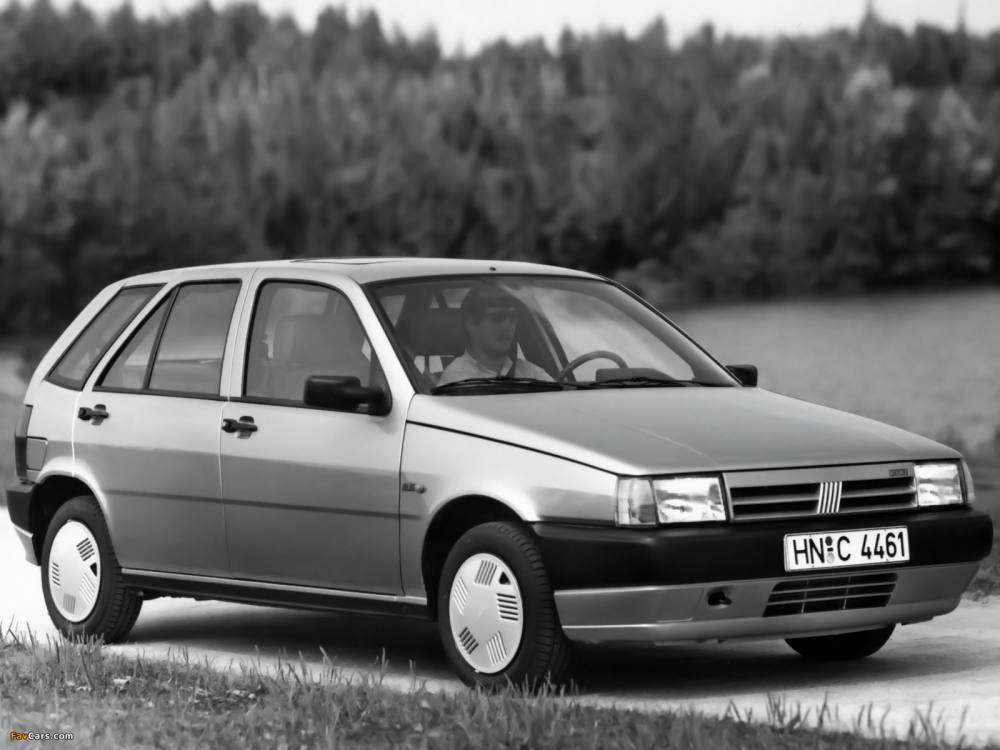

Fiat Tipo 1st Serie

Generation of Fiat Tipo 1988
Produced from 1988 to 1993


Upload an image
HOME » Fiat » Fiat Tipo 1988 » Fiat Tipo 1st Serie

Informations about (**)

End of production

Trim Levels/Versions 10

YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
1988 1988 Fiat Tipo ie 16v Petrol HatchbackUNK 204 km/h 1
E
1988 1988 Fiat Tipo 1.1 FIRE Petrol HatchbackUNK 150 km/h 1
E
1988 1988 Fiat Tipo 1.4 S Petrol HatchbackUNK 160 km/h 1
E
1988 1988 Fiat Tipo 1.6 DGT Petrol HatchbackUNK 171 km/h 1
E
1988 1988 Fiat Tipo 1.8 ie Petrol HatchbackUNK 187 km/h 1
E
1988 1988 Fiat Tipo 1.9 DS DGT Diesel HatchbackUNK 160 km/h 1
E
1988 1988 Fiat Tipo 2.0 Automatica Petrol HatchbackUNK 180 km/h 1
E
1988 1988 Fiat Tipo DS Diesel HatchbackUNK 150 km/h 1
E
1988 1988 Fiat Tipo Turbo DSX Diesel HatchbackUNK 175 km/h 1
E
1991 1991 Fiat Tipo 2.0ie 16v Petrol HatchbackUNK 208 km/h 1
E

Engines (10)

» Diesel Engines
Id.Engine1697 cc1929 cc1929 cc
Kind of EngineNaturally aspiratedNaturally aspiratedTurbocharged
Identificative engine
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1697 cc1929 cc1929 cc
Cylinders number4 4 4
FuelDieselDieselDiesel
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque98 N-m119 N-m191 N-m
Torque @ r.p.m. 2900 rpm 2000 rpm 2400 rpm
Cylinders angle
Maximum Power (HP)58 hp65 hp92 hp
Power (PS)59 ps66 ps93 ps
Power kW43 kW48 kW69 kW
Power @ rounds per minute4600 rpm4600 rpm4100 rpm
Bore82.6 mm82.6 mm82.6 mm
Stroke79.2 mm90 mm90 mm
Valve TrainSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHC
Compression Ratio20.5:1
Engine block material
Cylinder head material
Fuel Systembo diesel inj.
CoolantWaterWaterWater
Engine Data accuracy
Tipo DS
Tipo 1.9 DS DGT
Tipo Turbo DSX
» Petrol Engines
Id.Engine1108 cc1372 cc1581 cc1756 cc1756 cc1995 cc1995 cc
Kind of EngineNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspirated
Identificative engine
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1108 cc1372 cc1581 cc1756 cc1756 cc1995 cc1995 cc
Cylinders number4 4 4 4 4 4 4
FuelPetrolPetrolPetrolPetrolPetrolPetrolPetrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque89 N-m109 N-m130 N-m140 N-m156 N-m173 N-m
Torque @ r.p.m. 2900 rpm 2900 rpm 2900 rpm 2500 rpm 3300 rpm 5000 rpm
Cylinders angle
Maximum Power (HP)55 hp72 hp83 hp110 hp138 hp115 hp145 hp
Power (PS)56 ps73 ps84 ps112 ps140 ps117 ps147 ps
Power kW41 kW54 kW62 kW82 kW103 kW86 kW108 kW
Power @ rounds per minute5500 rpm6000 rpm6000 rpm6000 rpm6250 rpm5750 rpm6250 rpm
Bore70 mm80.5 mm86.4 mm84 mm84 mm84 mm84 mm
Stroke72 mm67.4 mm67.46 mm79.2 mm79.2 mm90 mm90 mm
Valve TrainSingle overhead camshaft SOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHCDouble overhead camshaft DOHC
Compression Ratio9.2:1 9.2:1 9.5:1 9.5:1 10.5:1
Engine block material
Cylinder head material
Fuel Systembo spi fuel inj.1 we carbweber marelli iaw fuel inj.
CoolantWaterWaterotherWaterWaterWaterWater
Engine Data accuracy
D
D
Tipo 1.1 FIRE
Tipo 1.4 S
Tipo 1.6 DGT
Tipo 1.8 ie
Tipo ie 16v
Tipo 2.0 Automatica
Tipo 2.0ie 16v

Car body variants (1)

HAT
Variants#HAT
#HAT
#HAT
#HAT
#HAT
#HAT
Body styleHatchbackHatchbackHatchbackHatchbackHatchbackHatchback
no.Doors
Wheelbase2540 mm2540 mm2540 mm2540 mm2540 mm2540 mm
Lenght3958 mm3958 mm3958 mm3958 mm3958 mm3958 mm
Width1700 mm1700 mm1700 mm1700 mm1700 mm1700 mm
Height1430 mm1445 mm1445 mm1445 mm1445 mm1445 mm
Curb Weight
Wheel Drive
Engine LocationFrontFrontFrontFrontFrontFront
Chassis
Seating capacity (number)
Track Tread (front)1446 mm1429 mm1430 mm1436 mm
Track Tread (rear)1421 mm1415 mm1415 mm1415 mm
Luggage capacity (min)
Luggage capacity (max)
Weight distribution (FRONT)
Engine AlignmentTransverseTransverseTransverse
Drag Coefficient
Equipment
Tipo 2.0ie 16v
Tipo 1.1 FIRE
Tipo 1.4 S
Tipo 1.9 DS DGT
Tipo 2.0 Automatica
Tipo Turbo DSX
Tipo 1.6 DGT
Tipo 1.8 ie
Tipo DS
Tipo ie 16v
