Mid Generational Restyling, Model year

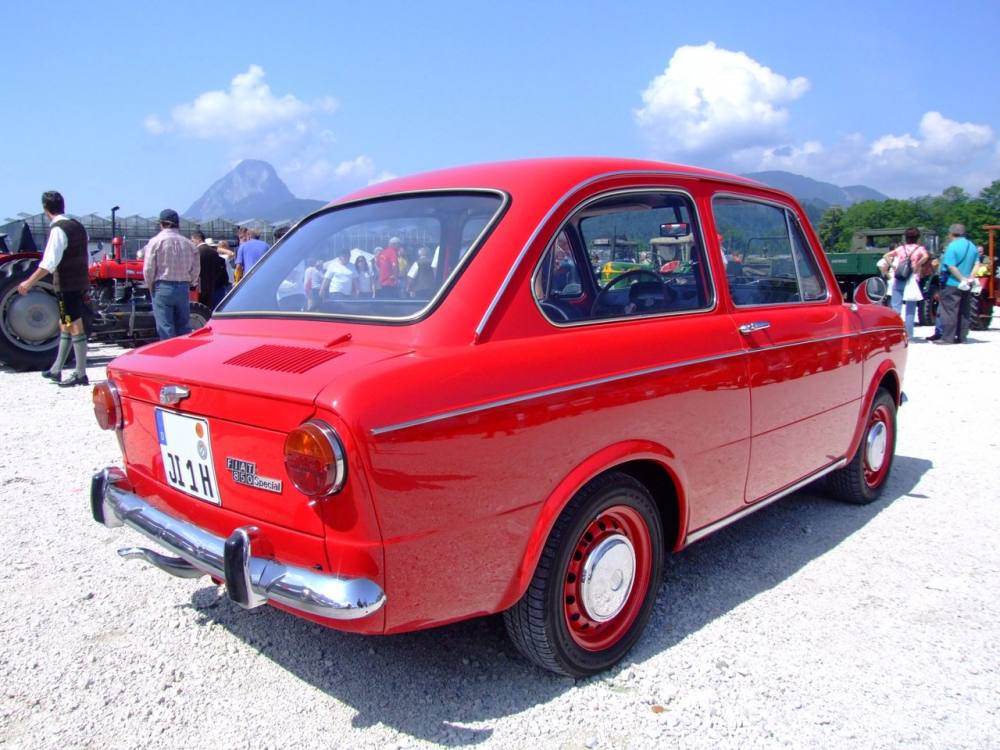

Fiat 850 (Mid-life update)
Produced from 1968 to 1971
Restyling of Fiat 850
Produced from 1968 to 1971
Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
---|---|---|---|---|---|---|---|---|---|
Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
1968 | Fiat 850 Coupe (1968) | Petrol | Coupé | RWD | - | 1 | E | ||
1968 | 1968 Fiat 850 Sport Coupé | Petrol | Coupé | RWD | 145 km/h | 1 | E | ||
1968 | 1968 Fiat 850 Sport Spider | Petrol | Convertible/Cabrio/Cabriolet | RWD | 146 km/h | 1 | E | ||
1968 | Fiat 850 Super Berlina | Petrol | Sedan | RWD | 126 km/h | 1 | E | ||
1968 | Fiat 850 Lucciola Francis Lombardi | Petrol | Sedan | RWD | 1967 | 1969 | - | 2 | C |
1969 | Fiat 850 S Berlina Special Vignale | Petrol | Sedan | RWD | - | 1 | E |
Id.Engine | 841 cc | 843 cc | 843 cc | 843 cc | 903 cc | 903 cc |
---|---|---|---|---|---|---|
Kind of Engine | Naturally aspirated | Naturally aspirated | Naturally aspirated | Naturally aspirated | Naturally aspirated | |
Identificative engine | 100 gbc.000 | 100 gbs.000 | ||||
Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine | Straight/Inline Engine |
Displacement | 841 cc | 843 cc | 843 cc | 843 cc | 903 cc | 903 cc |
Cylinders number | 4 | 4 | 4 | 4 | 4 | 4 |
Fuel | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
Electric engine - kind | ||||||
Battery kind | ||||||
Peak Power (hp) | ||||||
Peak Power (kW) | ||||||
Battery power | ||||||
Operating Voltage | ||||||
Battery: Operating Temperature | ||||||
Battery: System Voltage | ||||||
Battery: Cell Configuration | ||||||
Battery: 0-80% Charge time | ||||||
Torque | 60 N-m | 54 N-m | 55 N-m | 59 N-m | 65 N-m | 65 N-m |
Torque @ r.p.m. | 3600 rpm | 3200 rpm | 3400 rpm | 3600 rpm | 4000 rpm | 4000 rpm |
Cylinders angle | ||||||
Maximum Power (HP) | 34 hp | 36 hp | 46 hp | 51 hp | 51 hp | |
Power (PS) | 42 ps | 34.5 ps | 36.5 ps | 46.6 ps | 52 ps | 52 ps |
Power kW | 25.4 kW | 26.8 kW | 34.3 kW | 38 kW | 38 kW | |
Power @ rounds per minute | 5300 rpm | 4800 rpm | 5000 rpm | 6400 rpm | 6500 rpm | 6500 rpm |
Bore | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | |
Stroke | 63.5 mm | 63.5 mm | 63.5 mm | 68 mm | 68 mm | |
Valve Train | Overhead valves OHV | Overhead valves OHV | Overhead valves OHV | Overhead valves OHV | Overhead valves OHV | |
Compression Ratio | 9 | 8:1 | 8.8:1 | 9.3:1 | 9.5:1 | 9.5:1 |
Engine block material | ||||||
Cylinder head material | ||||||
Fuel System | 1 weber 30 icf 3 carburettor | 1 weber 30 icf 3 carburettor | 1 weber 30 dic carburettor | 1 weber 30 dic 2 carburettor | 1 weber 30 dic 2 carburettor | |
Coolant | Water | Water | Water | Water | Water | |
Engine Data accuracy | D | |||||
850 Coupe | 850 Lucciola | 850 Super Berlina | 850 S Berlina Special Vignale | 850 Sport Coupé | 850 Sport Spider |
Variants | #COU | #COU | #CVT | #SED | #SED | #SED |
---|---|---|---|---|---|---|
Body style | Coupé | Coupé | Convertible/Cabrio/Cabriolet | Sedan | Sedan | Sedan |
no.Doors | ||||||
Wheelbase | 2010 mm | 2027 mm | 2027 mm | 2027 mm | 2027 mm | 2027 mm |
Lenght | 3610 mm | 3651 mm | 3782 mm | 3575 mm | 3650 mm | |
Width | 1510 mm | 1500 mm | 1500 mm | 1422 mm | 1425 mm | 1460 mm |
Height | 1310 mm | 1353 mm | 1219 mm | 1384 mm | 1320 mm | |
Curb Weight | ||||||
Wheel Drive | ||||||
Engine Location | Rear | Rear | Rear | Rear | Rear | Rear |
Chassis | ||||||
Seating capacity (number) | ||||||
Track Tread (front) | 1170 mm | 1170 mm | 1146 mm | 1150 mm | ||
Track Tread (rear) | 1222 mm | 1222 mm | 1212 mm | 1210 mm | ||
Luggage capacity (min) | ||||||
Luggage capacity (max) | ||||||
Weight distribution (FRONT) | ||||||
Engine Alignment | Longitudinal | Longitudinal | Longitudinal | Longitudinal | Longitudinal | |
Drag Coefficient | ||||||
Equipment | ||||||
850 Coupe | 850 Sport Coupé | 850 Sport Spider | 850 Lucciola | 850 Super Berlina | 850 S Berlina Special Vignale |
