Generation of Citroën C3

Generation

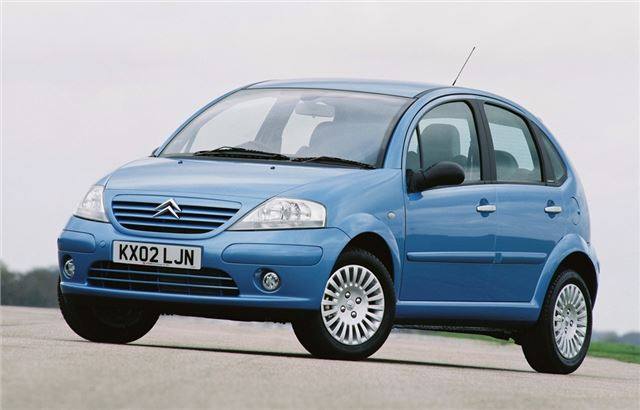

Citroën C3 I

Produced from 2002 to 2005

Makes » Citroën » Citroën C3 » Citroën C3 I

Informations about

Still in production

Trim Levels/Versions

7
YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
1999 1999 Citroën C3 Petrol SedanFWD - 1
2001 2001 Citroën C3 1.6 16V Petrol HatchbackFWD - 1
2001 2001 Citroën C3 1.4i Petrol HatchbackFWD - 1
2001 2001 Citroën C3 1.4 HDi 16v Diesel HatchbackFWD - 1
2001 2001 Citroën C3 1.1i Petrol HatchbackFWD - 1
2001 2001 Citroën C3 1.4 HDi Diesel HatchbackFWD - 1
2001 2001 Citroën C3 1.4i Automatic Petrol HatchbackFWD - 1

Engines

6
» Diesel Engines
Id.Engine1399 cc1399 cc
Kind of EngineTurbochargedTurbocharged
Identificative enginedv4td dv4ted4
Cylinders ConfigurationStraight/Inline EngineStraight/Inline Engine
Displacement1399 cc1399 cc
Cylinders number4 4
FuelDieselDiesel
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque150 N-m200 N-m
Torque @ r.p.m. 1750 rpm 1750 rpm
Cylinders angle
Maximum Power (HP)67 hp89 hp
Power (PS)
Power kW50 kW66 kW
Power @ rounds per minute4000 rpm4000 rpm
Bore73.7 mm73.7 mm
Stroke82 mm82 mm
Valve TrainSingle overhead camshaft SOHCDouble overhead camshaft DOHC
Compression Ratio
Engine block material
Cylinder head material
Fuel Systemcommon rail direct diesel injectioncommon rail direct diesel injection
CoolantWaterWater
Engine Data accuracy
C3 1.4 HDi
C3 1.4 HDi 16v
» Petrol Engines
Id.Engine1124 cc1360 cc1587 cc1587 cc
Kind of EngineNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspirated
Identificative enginetu1jp tu3jp tu5jp4
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineStraight/Inline EngineStraight/Inline Engine
Displacement1124 cc1360 cc1587 cc1587 cc
Cylinders number4 4 4 4
FuelPetrolPetrolPetrolPetrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque94 N-m118 N-m147 N-m
Torque @ r.p.m. 3400 rpm 3300 rpm 4000 rpm
Cylinders angle
Maximum Power (HP)59 hp72 hp107 hp90 hp
Power (PS)91 ps
Power kW44 kW54 kW80 kW67 kW
Power @ rounds per minute5500 rpm5400 rpm5750 rpm5600 rpm
Bore72 mm75 mm78.5 mm78.5 mm
Stroke69 mm77 mm82 mm82 mm
Valve TrainSingle overhead camshaft SOHCSingle overhead camshaft SOHCDouble overhead camshaft DOHC
Compression Ratio10.5:1
Engine block material
Cylinder head material
Fuel Systemefiefiefi
CoolantWaterWaterWater
Engine Data accuracy
C3 1.1i
C3 1.4i
C3 1.4i Automatic
C3 1.6 16V
C3

Car body variants

2 HAT SED
Variants#HAT
#HAT
#SED
Body styleHatchbackHatchbackSedan
no.Doors
Wheelbase2460 mm2460 mm2445 mm
Lenght3850 mm3860 mm3675 mm
Width1670 mm1667 mm1730 mm
Height1520 mm1510 mm1620 mm
Curb Weight
Wheel Drive
Engine LocationFrontFrontFront
Chassis
Seating capacity (number)
Track Tread (front)1435 mm760 mm
Track Tread (rear)1435 mm640 mm
Luggage capacity (min)305 litres
Luggage capacity (max)
Weight distribution (FRONT)
Engine AlignmentTransverseTransverseTransverse
Drag Coefficient
Equipment
C3 1.6 16V
C3 1.4i Automatic
C3 1.4i
C3 1.4 HDi 16v
C3 1.1i
C3 1.4 HDi
C3

Related people

Market Sales

Market Sales info not avaiable.

edit Flag

Assembly site(s)

Sales figures

No sales informations avaiable
