Generation

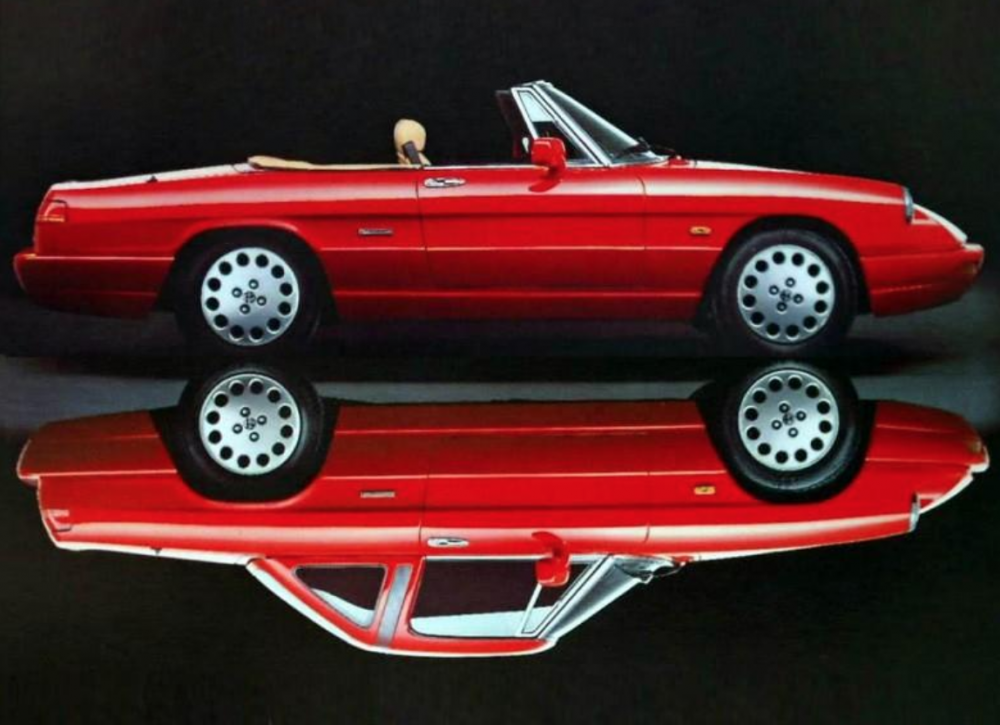

Alfa Romeo Spider Series IV
Produced from 1989 to 1994
Generation of Alfa Romeo Spider
Informations about
End of production
Generation of Alfa Romeo Spider
Produced from 1989 to 1994
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
|---|---|---|---|---|---|---|---|---|---|
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
| 1990 | 1990 Alfa Romeo Spider 1.6 | Petrol | Convertible/Cabrio/Cabriolet | UNK | 190 km/h | 1 | E | ||
| 1990 | 1990 Alfa Romeo Spider Injection | Petrol | Convertible/Cabrio/Cabriolet | UNK | 192 km/h | 1 | E |
| Id.Engine | 1567 cc | 1962 cc |
|---|---|---|
| Kind of Engine | Naturally aspirated | Naturally aspirated |
| Identificative engine | ||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1567 cc | 1962 cc |
| Cylinders number | 4 | 4 |
| Fuel | Petrol | Petrol |
| Electric engine - kind | ||
| Battery kind | ||
| Peak Power (hp) | ||
| Peak Power (kW) | ||
| Battery power | ||
| Operating Voltage | ||
| Battery: Operating Temperature | ||
| Battery: System Voltage | ||
| Battery: Cell Configuration | ||
| Battery: 0-80% Charge time | ||
| Torque | 137 N-m | 157 N-m |
| Torque @ r.p.m. | 4800 rpm | 2700 rpm |
| Cylinders angle | ||
| Maximum Power (HP) | 107 hp | 120 hp |
| Power (PS) | 108 ps | 122 ps |
| Power kW | 80 kW | 89 kW |
| Power @ rounds per minute | 6000 rpm | 5800 rpm |
| Bore | 78 mm | 84 mm |
| Stroke | 82 mm | 88.5 mm |
| Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
| Compression Ratio | 9:1 | 9:1 |
| Engine block material | ||
| Cylinder head material | ||
| Fuel System | 2 we carbs | bo mot ml4.1 fuel inj. |
| Coolant | Water | Water |
| Engine Data accuracy | ||
| Spider 1.6 | Spider Injection |
| Variants | #CVT | #CVT |
|---|---|---|
| Body style | Convertible/Cabrio/Cabriolet | Convertible/Cabrio/Cabriolet |
| no.Doors | ||
| Wheelbase | 2250 mm | 2250 mm |
| Lenght | 4260 mm | 4267 mm |
| Width | 1630 mm | 1626 mm |
| Height | 1290 mm | 1295 mm |
| Curb Weight | ||
| Wheel Drive | ||
| Engine Location | Front | Front |
| Chassis | ||
| Seating capacity (number) | ||
| Track Tread (front) | 1325 mm | 1323 mm |
| Track Tread (rear) | 1275 mm | 1273 mm |
| Luggage capacity (min) | ||
| Luggage capacity (max) | ||
| Weight distribution (FRONT) | ||
| Engine Alignment | Longitudinal | Longitudinal |
| Drag Coefficient | ||
| Equipment | ||
| Spider 1.6 | Spider Injection |
