Generation

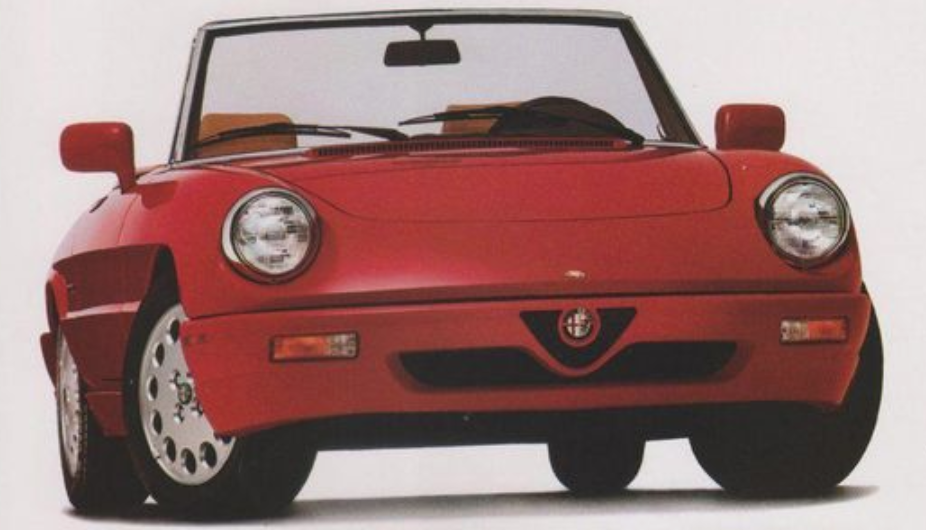

Alfa Romeo Spider Series III
Produced from 1983 to 1989
Generation of Alfa Romeo Spider
Informations about
End of production
Generation of Alfa Romeo Spider
Produced from 1983 to 1989
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
|---|---|---|---|---|---|---|---|---|---|
| Year | Model Name | Fuel | Body | WheelDrive | Pr.From | to | Speed | QOD | |
| 1982 | Alfa Romeo 1600 Spider | Petrol | Convertible/Cabrio/Cabriolet | RWD | 180 km/h | 2 | E | ||
| 1985 | 1985 Alfa Romeo Spider Veloce | Petrol | Convertible/Cabrio/Cabriolet | - | 1 | E |
| Id.Engine | 1570 cc | 1962 cc |
|---|---|---|
| Kind of Engine | Naturally aspirated | Naturally aspirated |
| Identificative engine | ||
| Cylinders Configuration | Straight/Inline Engine | Straight/Inline Engine |
| Displacement | 1570 cc | 1962 cc |
| Cylinders number | 4 | 4 |
| Fuel | Petrol | Petrol |
| Electric engine - kind | ||
| Battery kind | ||
| Peak Power (hp) | ||
| Peak Power (kW) | ||
| Battery power | ||
| Operating Voltage | ||
| Battery: Operating Temperature | ||
| Battery: System Voltage | ||
| Battery: Cell Configuration | ||
| Battery: 0-80% Charge time | ||
| Torque | 142 N-m | 178 N-m |
| Torque @ r.p.m. | 4000 rpm | 4000 rpm |
| Cylinders angle | ||
| Maximum Power (HP) | 103 hp | 126 hp |
| Power (PS) | 104 ps | 128 ps |
| Power kW | 77 kW | 94 kW |
| Power @ rounds per minute | 5500 rpm | 5400 rpm |
| Bore | 78 mm | 84 mm |
| Stroke | 82 mm | 88.5 mm |
| Valve Train | Double overhead camshaft DOHC | Double overhead camshaft DOHC |
| Compression Ratio | 9:1 | 9:1 |
| Engine block material | ||
| Cylinder head material | ||
| Fuel System | 2 we 40 dcoe 33 carbs | |
| Coolant | Water | Water |
| Engine Data accuracy | ||
| 1600 Spider | Spider Veloce |
| Variants | #CVT | #CVT |
|---|---|---|
| Body style | Convertible/Cabrio/Cabriolet | Convertible/Cabrio/Cabriolet |
| no.Doors | ||
| Wheelbase | 2250 mm | 2250 mm |
| Lenght | 4120 mm | 4247 mm |
| Width | 1630 mm | 1630 mm |
| Height | 1290 mm | 1290 mm |
| Curb Weight | ||
| Wheel Drive | ||
| Engine Location | Front | Front |
| Chassis | ||
| Seating capacity (number) | ||
| Track Tread (front) | 1320 mm | 1330 mm |
| Track Tread (rear) | 1270 mm | 1280 mm |
| Luggage capacity (min) | ||
| Luggage capacity (max) | ||
| Weight distribution (FRONT) | ||
| Engine Alignment | Longitudinal | Longitudinal |
| Drag Coefficient | ||
| Equipment | ||
| 1600 Spider | Spider Veloce |
