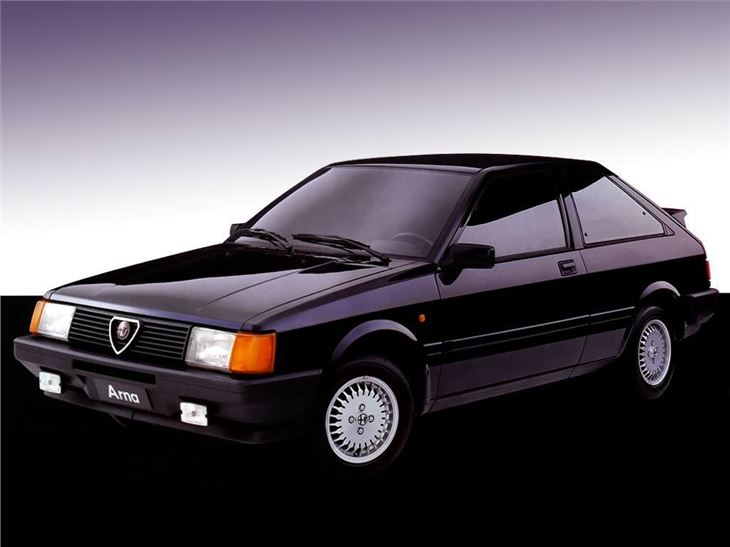

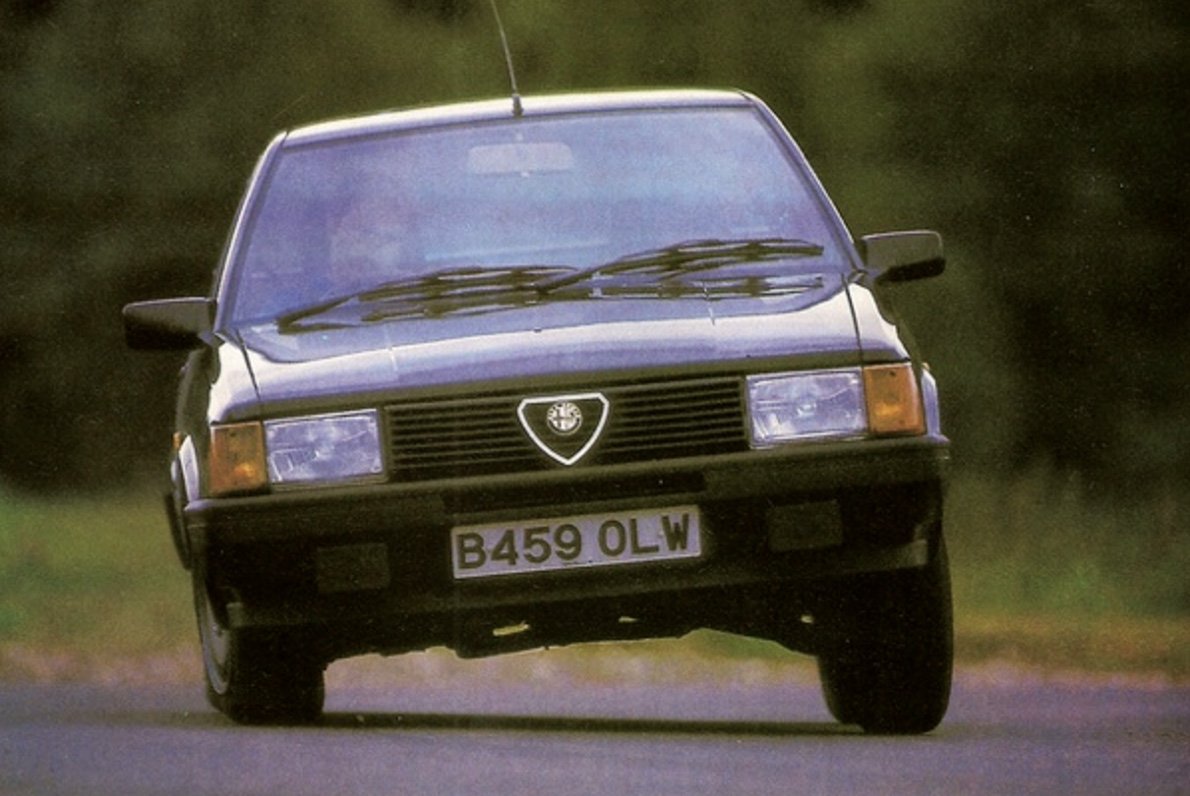

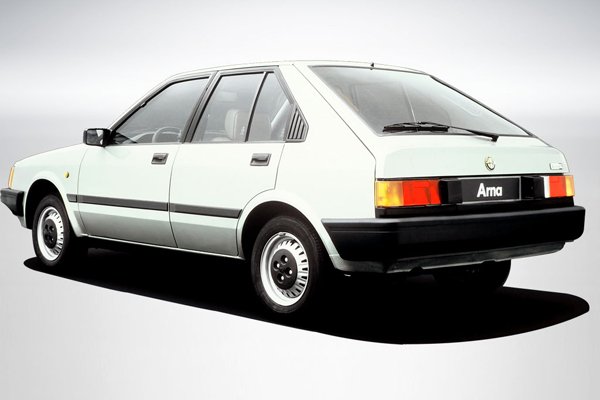

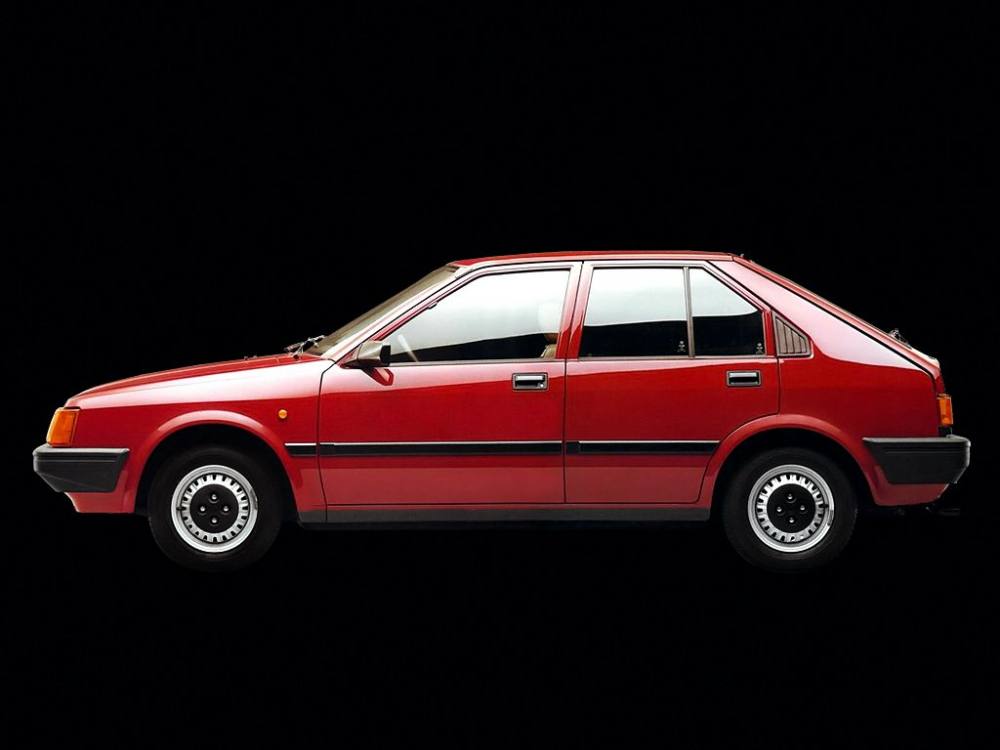

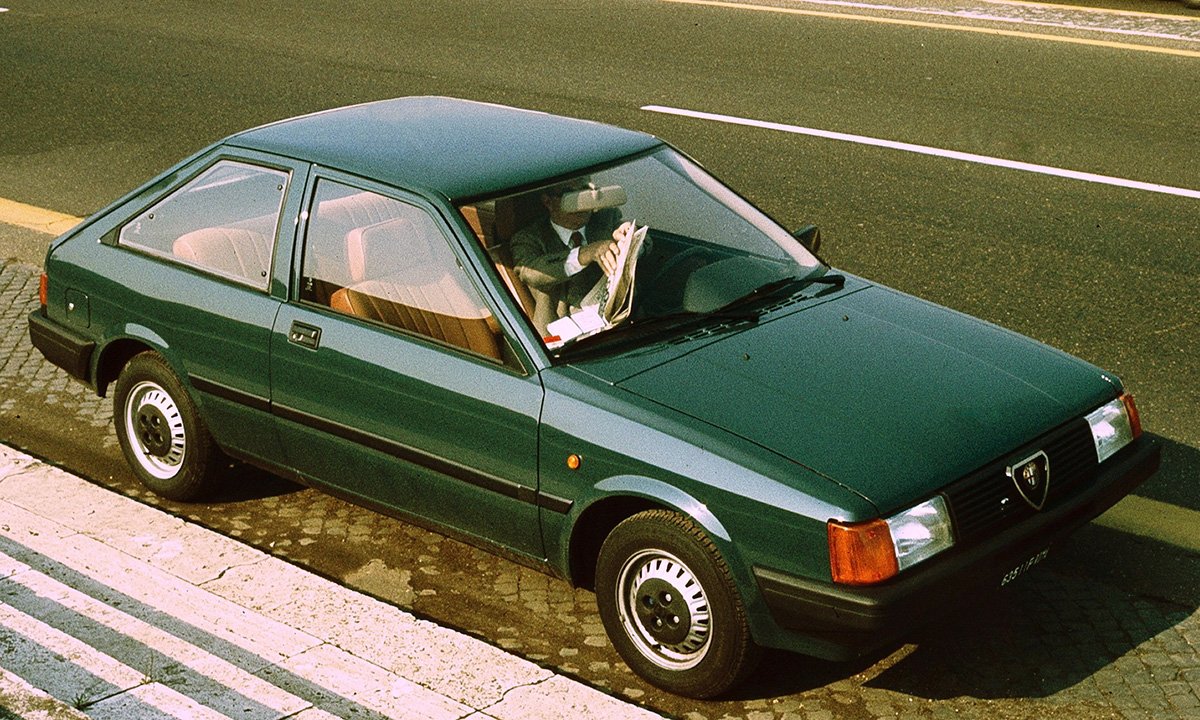

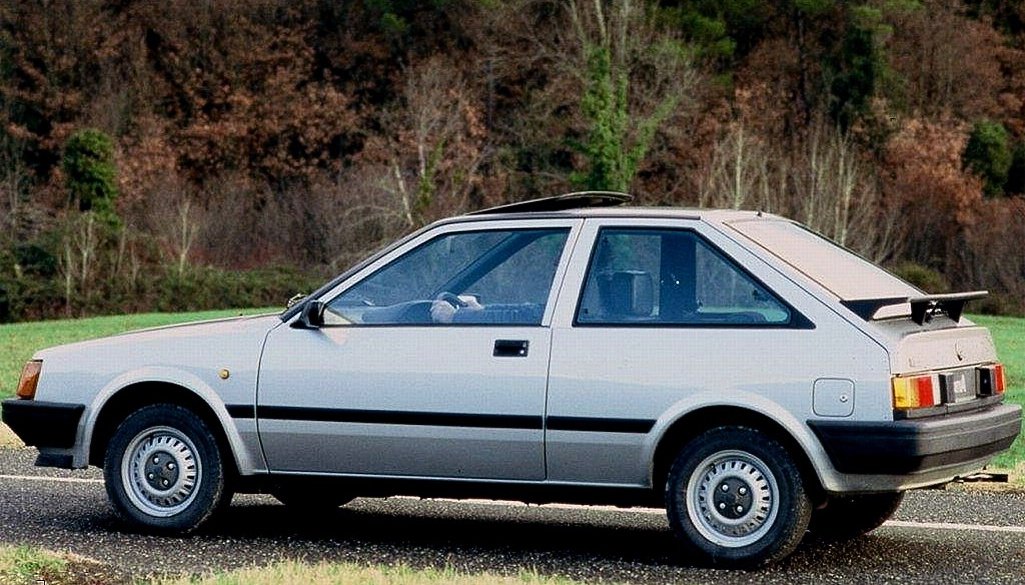

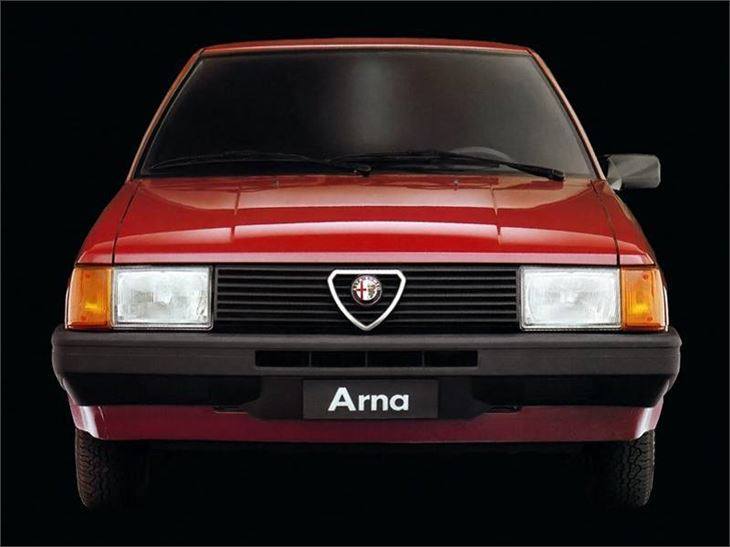

Alfa Romeo Arna

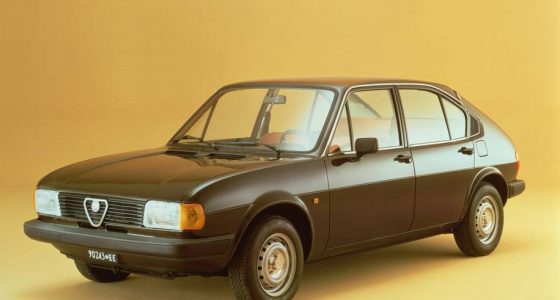

Perhaps the worst Alfa Romeo ever. The management of Alfa Romeo, struggling with a financial crisis and a range of outdated models, try to replace the Alfasud with a Nissan project, remarked Alfa Romeo and Alfa Romeo Arna.

Infact A.R.N.A means Alfa Romeo – Nissan Auto.

Some Arnas were (oddities of car manufacturers!) rebadged and sold as Nissan Milano.

Trim Levels/Versions

Year	Model Name	Fuel	Body	WheelDrive	Pr.From	to	Speed		QOD
Year	Model Name	Fuel	Body	WheelDrive	Pr.From	to	Speed		QOD
1983	Alfa Romeo Arna 1.2 L	Petrol	Hatchback	FWD	1983	1984	156 km/h	2

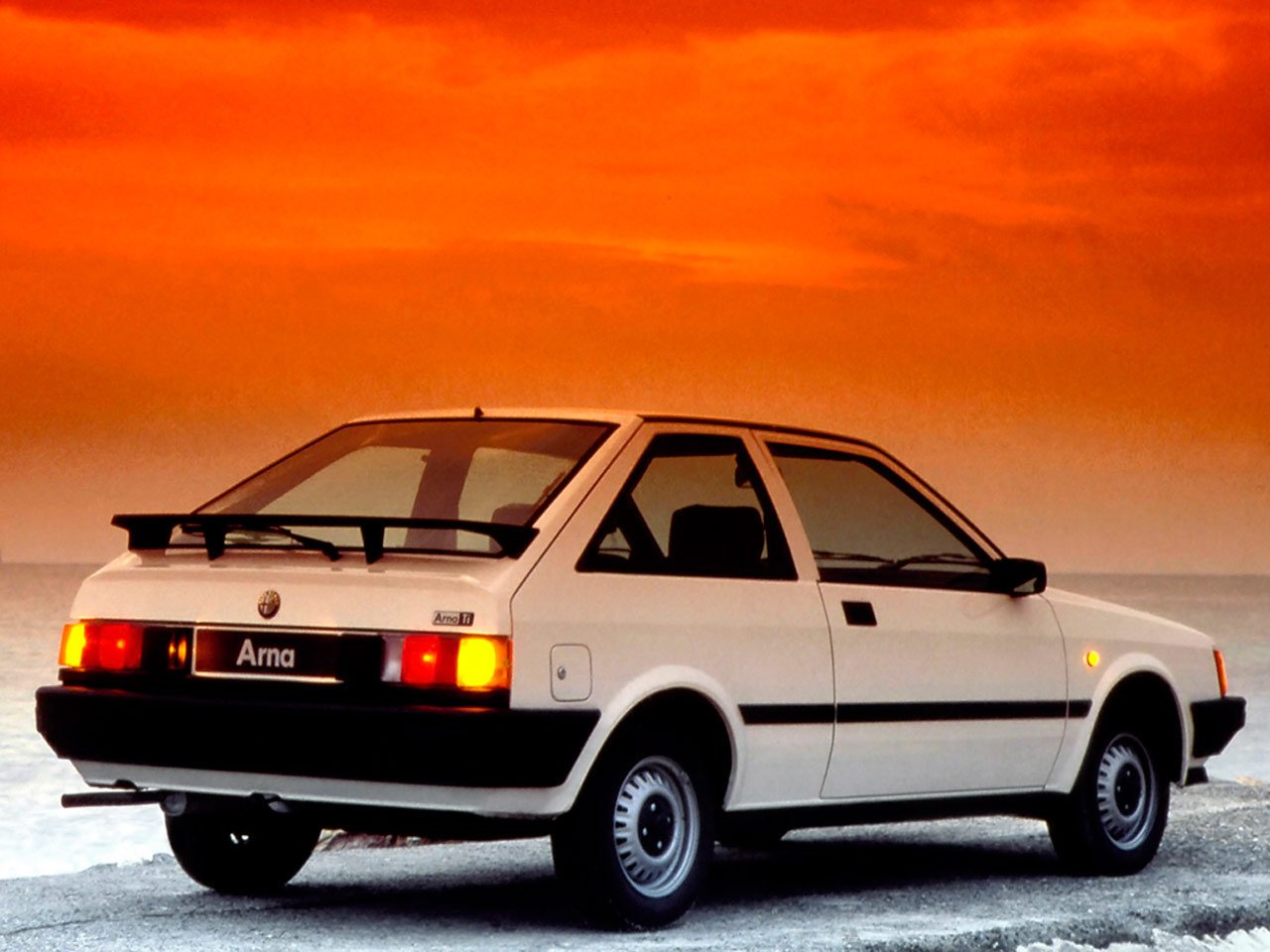

1984	Alfa Romeo Arna TI (1984)	Petrol	Hatchback	FWD	1984	1985	173 km/h	2
1985	Alfa Romeo Arna 1.5 Ti (1985)	Petrol	Hatchback	FWD	1985	1986	175 km/h	2

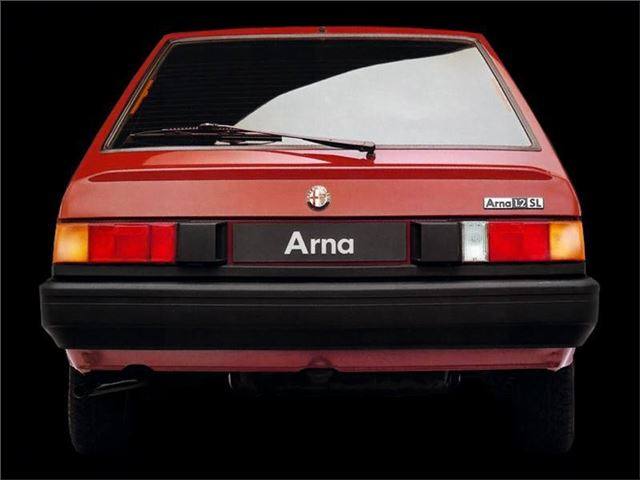

1983	Alfa Romeo Arna 1.2 SL	Petrol	Hatchback	FWD	1983	1984	156 km/h	2
1985	Alfa Romeo Arna 1.2 SL (1985)	Petrol	Hatchback	FWD	1985	1987	156 km/h	1
1985	Alfa Romeo Arna 1.2 L (1985)	Petrol	Hatchback	FWD	1985	1987	156 km/h	1

Engines

» Petrol Engines

Id.Engine	1186 cc	1186 cc	1186 cc	1351 cc	1490 cc
Kind of Engine		Naturally aspirated	Naturally aspirated		Naturally aspirated
Identificative engine
Cylinders Configuration	Boxer/Flat Engine	Boxer/Flat Engine	Boxer/Flat Engine	Straight/Inline Engine	Boxer/Flat Engine
Displacement	1186 cc	1186 cc	1186 cc	1351 cc	1490 cc
Cylinders number	4	4	4	4	4
Fuel	Petrol	Petrol	Petrol	Petrol	Petrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Battery: Operating Temperature
Battery: System Voltage
Battery: Cell Configuration
Battery: 0-80% Charge time
Torque	88 N-m	88 N-m	90 N-m	130 N-m
Torque @ r.p.m.	3200 rpm	3200 rpm		4000 rpm
Cylinders angle
Maximum Power (HP)				86 hp	90 hp
Power (PS)	63 ps	63 ps	68 ps		91 ps
Power kW		46 kW	50 kW		67 kW
Power @ rounds per minute	6000 rpm	6000 rpm	6000 rpm	5800 rpm	5800 rpm
Bore		80 mm		80 mm	84 mm
Stroke		59 mm		67.2 mm	67.2 mm
Valve Train					Single overhead camshaft SOHC
Compression Ratio				9.7:1
Engine block material		Cast Iron
Cylinder head material		Light alloy
Fuel System
Coolant		Water		Water	Water
Engine Data accuracy
	Arna 1.2 SL	Arna 1.2 L	Arna 1.2 SL (1985) Arna 1.2 L (1985)	Arna TI (1984)	Arna TI 1.5

Car body variants

1 HAT

Variants	#HAT
Body style	Hatchback
no.Doors
Wheelbase	2416 mm
Lenght	4000 mm
Width	1620 mm
Height	1350 mm
Curb Weight
Wheel Drive
Engine Location	Front
Chassis
Seating capacity (number)
Track Tread (front)	1392 mm
Track Tread (rear)	1402 mm
Luggage capacity (min)	250 litres
Luggage capacity (max)	1000 litres
Weight distribution (FRONT)
Engine Alignment	Transverse
Drag Coefficient
Equipment
	Arna 1.2 L Arna TI (1984) Arna TI 1.5 Arna 1.2 SL Arna 1.2 SL (1985) Arna 1.2 L (1985)
