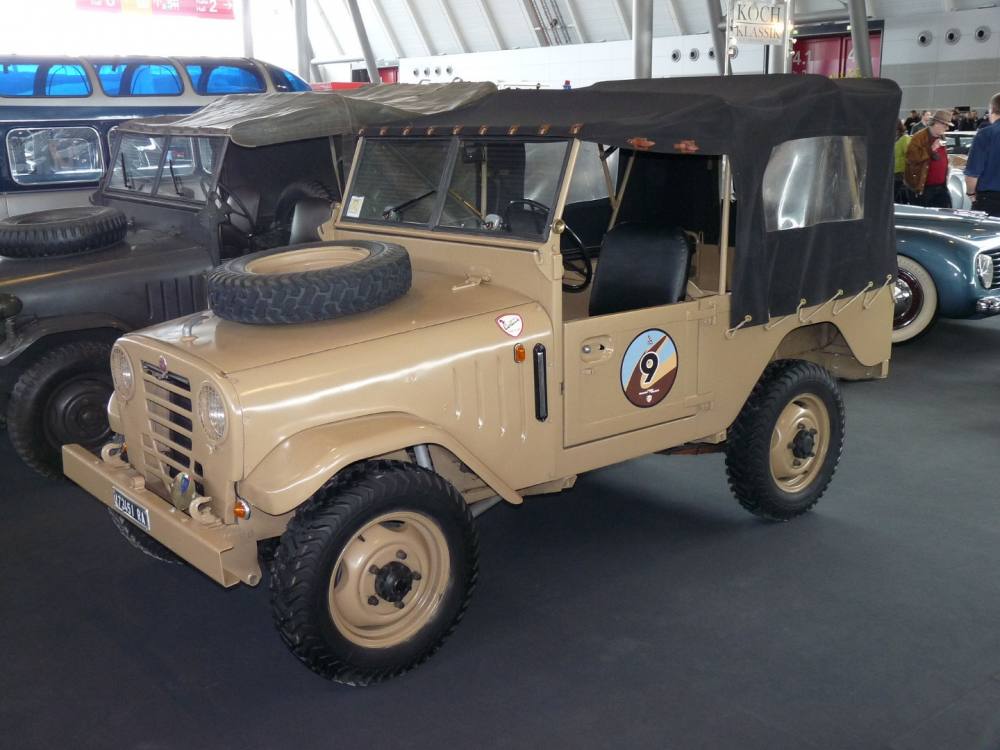

Alfa Romeo AR 51 La Matta 1900M
MODEL YEAR: 1952
Park in your virtuagarage
Data Quality
B
Contributors
No revisions
Specifications
Body style
Sport Utility Vehicle
no.Doors
2
Wheelbase
2200 mm
Lenght
3520 mm
Width
1570 mm
Height
1820 mm
Curb Weight
1250 Kg
Wheel Drive
4WD
Engine Location
Front
Seating capacity (number)
2
Track Tread (front)
1300 mm
Track Tread (rear)
1300 mm
Engine Alignment
Longitudinal
Improve these informations
Found a typo or an error?Want to improve, modify the data of this car or create a variant? Edit it.
Anyone can improve data info on VirtuaGarage. Learn more
Engine
Kind of Engine
Naturally aspirated
Cylinders Configuration
Straight/Inline Engine
Displacement
1884 cc
Cylinders number
4
Fuel
Petrol
Maximum Power (HP)
64 hp
Power (PS)
65 ps
Power kW
48 kW
Power @ rounds per minute
4400 rpm
Bore
82.55 mm
Stroke
88 mm
Valve Train
Double overhead camshaft DOHC
Compression Ratio
7:1
Engine block material
Cast Iron
Cylinder head material
Light alloy
Fuel System
1 so carb
Coolant
Water
Engine Data accuracy
C
Drivetrain
Front Brakes
Drum
Rear Brakes
Drum
Transmission type
4 speed manual
Fuel capacity
50 litres
Suspensions Front
Independent, Torsion bar, Hydro Pneumatic Springs
Suspensions Rear
Live axle, Hydro Pneumatic Springs, Longitudinal semi-elliptical leaf springs
Steering
Worm and sector
I Gear Ratio
3.78:1
II Gear Ratio
2.38:1
III Gear Ratio
1.53:1
IV Gear Ratio
1:1
Reverse Gear ratio
3.68:1
Front tyres dimensions
6.40 x 16 artigl
Rear tyres dimensions
6.40 x 16 artigl
Clutch
Single dry-clutch friction disc
Lubrication
dry-sump
