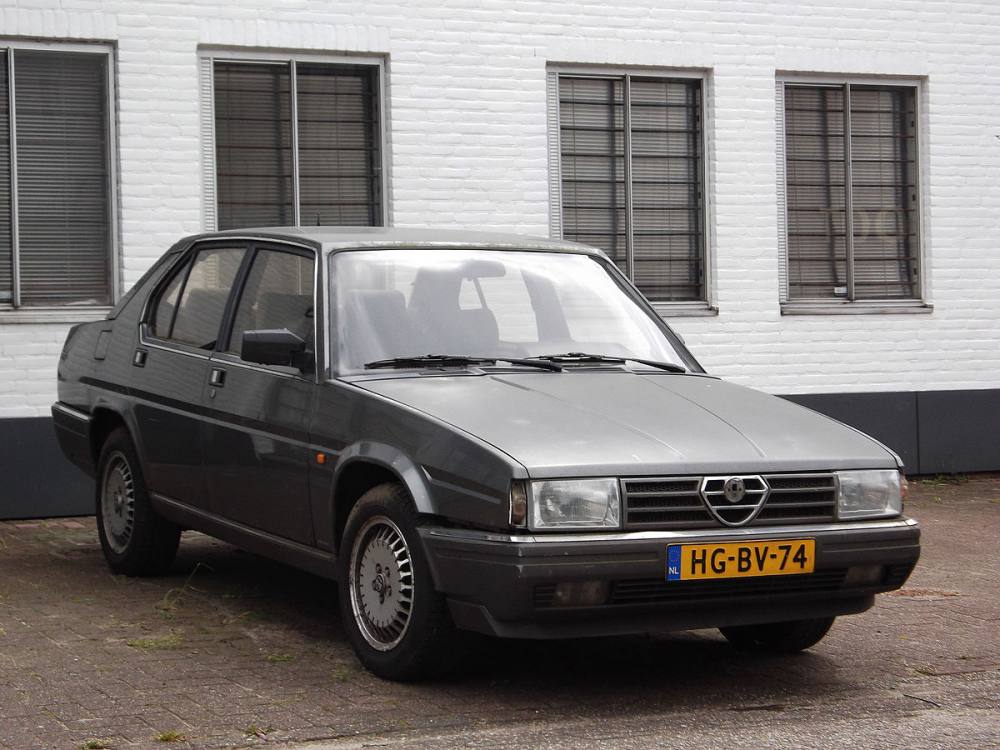

Alfa Romeo 90

CAR NAMEPLATE
(ALL SERIES / TRIMS)

Produced from 1984 to 1987


Upload an image

Trim Levels 6

YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
YearModel NameFuelBodyWheelDrivePr.FromtoSpeedQOD
1985 1985 Alfa Romeo 90 2.4 Turbodiesel 162 A3 Diesel SedanUNK 178 km/h 1
D
1984 Alfa Romeo 90 2.0 Petrol SedanRWD 190 km/h 2
B
1985 Alfa Romeo 90 1.8 Petrol SedanRWD 186 km/h 2
B
1985 Alfa Romeo 90 Quadrifoglio Oro 162 A Petrol SedanUNK 203 km/h 1
E
1985 Alfa Romeo 90 2.0 iniezione Petrol SedanRWD 190 km/h 2
B
1985 Alfa Romeo 90 2.0i V6 Petrol SedanRWD 192 km/h 2
B

Engines (5)

» Diesel Engines
Kind of EngineTurbocharged
Identificative enginevm 81a
Cylinders ConfigurationStraight/Inline Engine
Displacement2393 cc
Cylinders number4
FuelDiesel
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Torque235 N-m
Torque @ r.p.m. 2300 rpm
Cylinders angle
Maximum Power (HP)108 hp
Power (PS)110 ps
Power kW81 kW
Power @ rounds per minute4200 rpm
Bore92 mm
Stroke90 mm
Valve TrainOverhead valves OHV
Compression Ratio22:1
Engine block material
Cylinder head material
Fuel Systembo diesel inj. pump
CoolantWater
Engine Data accuracy
90 2.4 Turbodiesel
» Petrol Engines
Kind of EngineNaturally aspiratedNaturally aspiratedNaturally aspiratedNaturally aspirated
Identificative engine016.46
Cylinders ConfigurationStraight/Inline EngineStraight/Inline EngineV EngineV Engine
Displacement1779 cc1962 cc1997 cc2492 cc
Cylinders number4 4 6 6
FuelPetrolPetrolPetrolPetrol
Electric engine - kind
Battery kind
Peak Power (hp)
Peak Power (kW)
Battery power
Operating Voltage
Torque167 N-m176 N-m176 N-m210 N-m
Torque @ r.p.m. 4000 rpm 4000 rpm3000 rpm 4000 rpm
Cylinders angle60 60
Maximum Power (HP)132 hp154 hp
Power (PS)120 ps128 ps156 ps
Power kW88 kW115 kW
Power @ rounds per minute5300 rpm5400 rpm5600 rpm
Bore80 mm84 mm80 mm88 mm
Stroke88.5 mm88.5 mm66.2 mm68.3 mm
Valve TrainDouble overhead camshaft DOHCDouble overhead camshaft DOHCSingle overhead camshaft SOHCSingle overhead camshaft SOHC
Compression Ratio9.5:1 9:1 10.4:1 9:1
Engine block materialLight alloyLight alloy
Cylinder head materialLight alloyLight alloy
Fuel System2 so 40 phh carbsbosch l-jectronic fuel injectionelec. fuel inj.bo l-jet fuel inj.
CoolantWaterWaterWaterWater
Engine Data accuracy
90 1.8
90 2.0
90 2.0 iniezione
90 2.0i V6
90 Quadrifoglio Oro

Car body variants (1)

SED
Body styleSedan
no.Doors
Wheelbase2510 mm
Lenght4392 mm
Width1638 mm
Height1420 mm
Curb Weight
Wheel Drive
Engine LocationFront
Chassis
Seating capacity (number)
Track Tread (front)1366 mm
Track Tread (rear)1358 mm
Luggage capacity (min)
Luggage capacity (max)
Weight distribution (FRONT)
Engine AlignmentLongitudinal
Drag Coefficient
Equipment
90 2.4 Turbodiesel
90 2.0
90 1.8
90 Quadrifoglio Oro
90 2.0 iniezione
90 2.0i V6
